FT1R. FLOW SUSPENSION TRACK 24VDC, REMOTE POWER, END FEED, STATIC WHITE AND WARM DIM.
Configure
Add to project




RESOURCES
DESCRIPTION

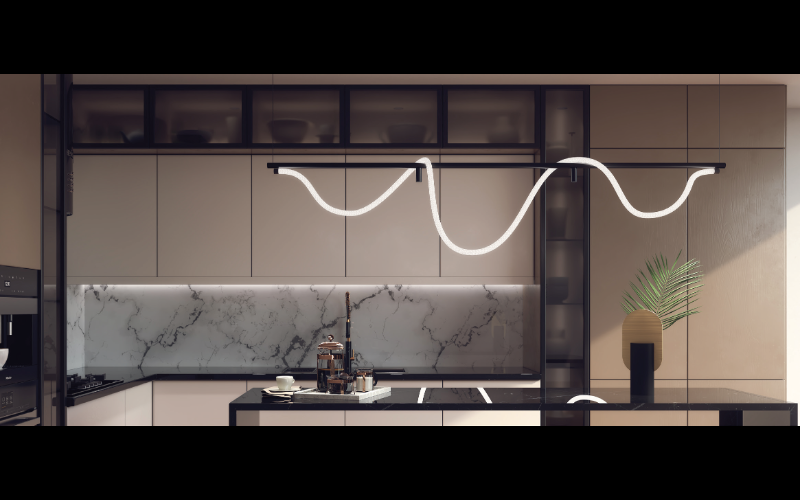

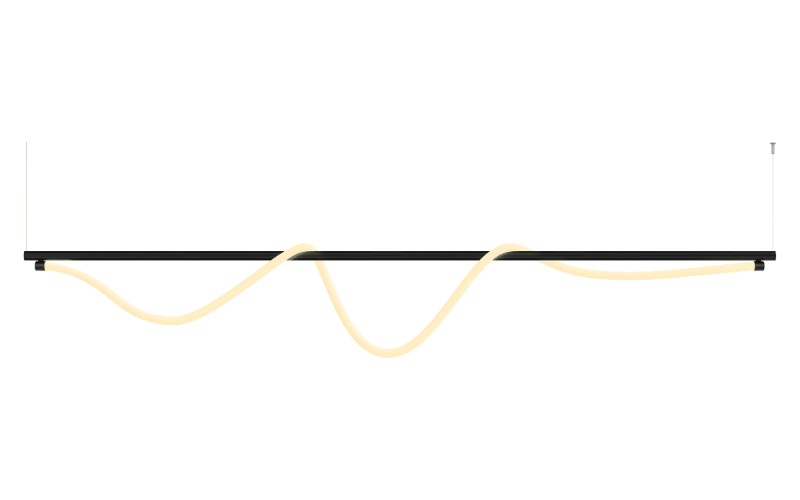

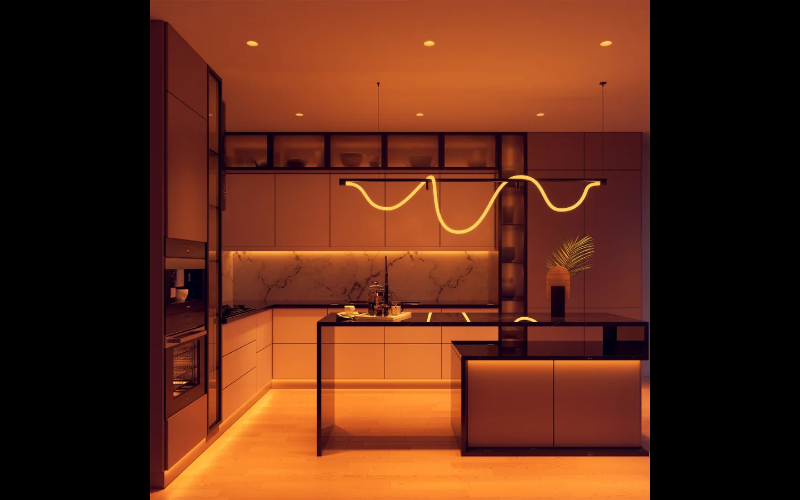

The Flow Track™ Suspension features a 360 Flex LED seamlessly wrapped around a single circuit track pipe, allowing you to have general lights and accent track lighting. Experiment with various configurations for a range of unique and dynamic designs. Designed for flexibility across minimal, transitional, and contemporary environments. Custom-tailor the Flow Single Circuit Suspension to any space instantly by adding Track Heads anywhere along the bottom of the suspension. The Flow creates a clean, uninterrupted indirect beam of light, available in multiple standard Color Temperatures, including Warm Dim 2700K (27D) or 3000K (30D) that dim down to 1800K. The Flow and Track Heads are powered by a 24VDC remote power supply (ordered separately) that can be located up to 40' away. Fixture includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.25"L: 4 Ft5 Ft6 Ft7 Ft8 FtH: 1.25"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K
- CRI95
- Watt(Approx)28 W35 W42 W49 W56 W
- Lumens(Approx)2782-3544 Lm3478-4430 Lm4174-5316 Lm4869-6202 Lm5565-7088 Lm
- OpticsIndirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypePendantTrack/Busway
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
