PureEdge Lighting

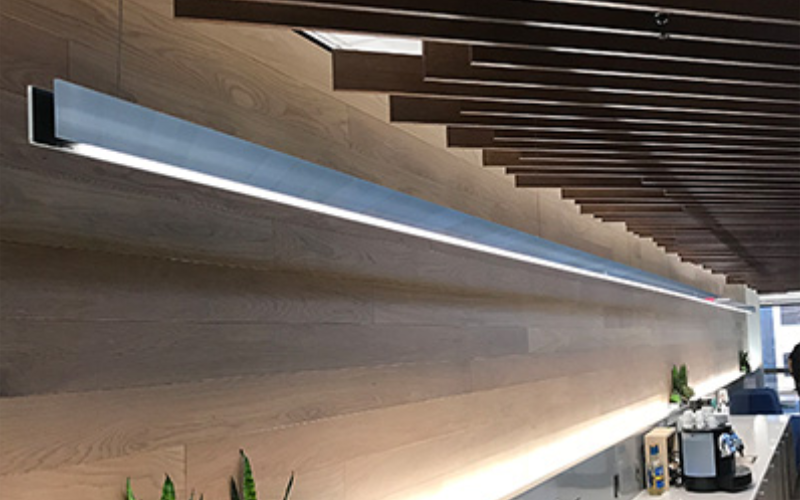

GLD. GLIDE GLASS DOWNLIGHT END FEED WITH POWER IN CANOPY.
 Configure
 Add to project
DESCRIPTION
Glide Glass Downlight End Feed is a linear LED Suspension that offers a clean Direct beam of illumination through a Diffused White 100® lens housed within Glass, giving it an architectural aesthetic with an elegant and timeless appeal. Available in eight standard sizes 36", 48", 60", 72", 84", 96", 108", 120", and three Glass finishes Black, White, and Mirrored Glass. Choose from nine standard Color Temperatures ranging between 2400K to 4000K, including two Warm Dim options of 2700K (27D) or 3000K (30D) that dim down to 2000K. Add an optional White or Black louver for additional glare reduction. Fixture includes a 5-year pro-rated warranty. For custom lengths and quotes, email our design team design@PureEdgeLighting.com.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1.74"
    L: 3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft
    H: 2.5"
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K
  • CRI
    95 85 84
  • Watt(Approx)
    4.4 W/Ft7.3 W/Ft9.6 W/Ft
  • Lumens(Approx)
    334 Lm/Ft531 Lm/Ft627 Lm/Ft
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%ELV/Reverse/Trailing
  • Controls/Network
  • Power/Voltage
    Integral120V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETL
  • Environment
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
