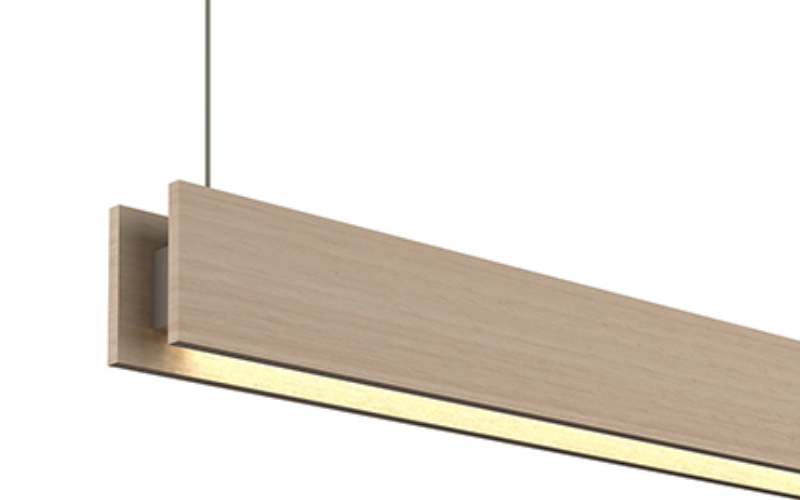

GLD. GLIDE WOOD DOWNLIGHT END FEED WITH POWER IN CANOPY.
Configure
Add to project



RESOURCES
DESCRIPTION
Glide Wood Downlight End Feed with Power is a linear LED Suspension that offers a clean Direct beam of illumination through a Diffused White 100° lens housed within Genuine hand-finished Hardwood, giving each fixture unique characteristics while preserving a clean and architectural aesthetic. Available in eight standard sizes 36", 48", 60", 72", 84", 96", 108", 120", and three wattage options. Choose from multiple standard Color Temperatures ranging between 2400K to 4000K, including two Warm Dim options of (27D) 2700K or (30D) 3000K that dim down to 2000K. Add an optional White or Black louver for additional diffusion. 4" flush canopies are only available in the following metal finishes Satin Nickel for Maple, Walnut, Cherry, and White Oak, Wood Espresso is paired with a Black canopy. Please refer to the canopy chart for corresponding lengths and finishes. Fixture includes a 5 year pro-rated warranty. For custom designs and quotes, send drawings to design@PureEdgeLighting.com.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.74"L: 3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 FtH: 2.5"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K
- CRI95 85 84
- Watt(Approx)5 W/Ft7.5 W/Ft10 W/Ft
- Lumens(Approx)307 Lm/Ft565 Lm/Ft667 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%ELV/Reverse/Trailing
- Controls/Network
- Power/VoltageIntegral120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- Environment
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeGLD-E-W
—
