PureEdge Lighting
KD. KURVE DISPLAY SIGN 24vdc SYSTEM, 85+ or 95+CRI.
Configure
Add to project
RESOURCES
DESCRIPTION

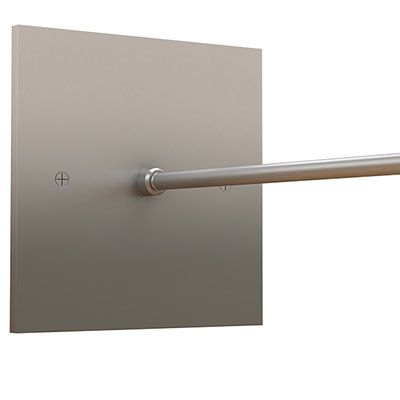

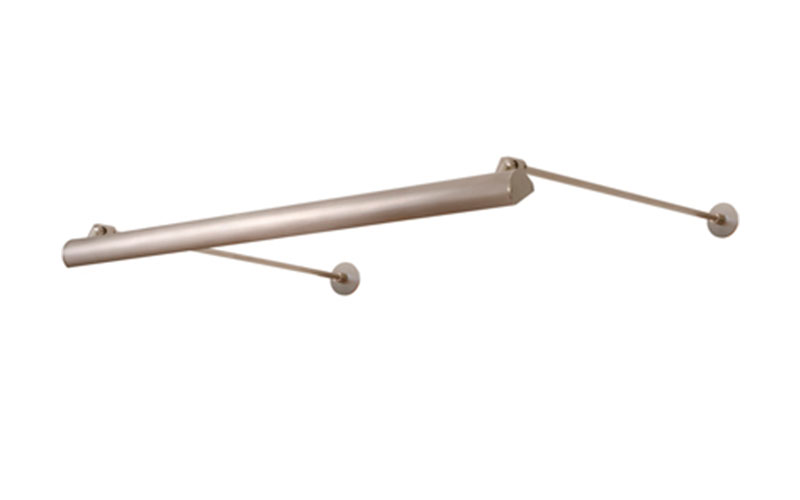

Kurve Display Sign features a lambertian white diffuser that provides uniform light without hotspots. At 7.5 watts per foot, the 24 volt DC channel contains 85+ or 95+ CRI LEDs and mounts 14 inches from wall. It may be ordered with a 4.6 inch round or square canopy that fits on a standard 4 inch square electrical box with round plaster ring; a 2.8 inch square canopy, or a special feed-thru stem for floating signs. Hinges on the fixture arm rotates up to 90 degrees (from facing the wall to straight down). Kurve is powered by a Class 2 remote power supply up to 40 feet away. Available from 12 inches to 120 inches/10 feet (Chrome max at 84 inches). May be ordered in 3, 5, 8 or 10 inch increments. Fixtures include a 5 year warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.5"L: Run length (Ft)H: 1.4"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K5700K
- CRI85 95
- Watt(Approx)7.5 W/Ft
- Lumens(Approx)270 Lm/Ft
- OpticsDirectAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to <1%ELV/Reverse/Trailing0-10VLutron Hi-lume Premier 3-wire (L3D03W)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- Environment
- Mounting TypeWall Arm/Cantilever
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeKD
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
