PureEdge Lighting
KNE. KNIFE EDGE CEILING TUNABLE WHITE 24VDC PLASTER-IN LED SYSTEM.
Configure
Add to project



RESOURCES
DESCRIPTION

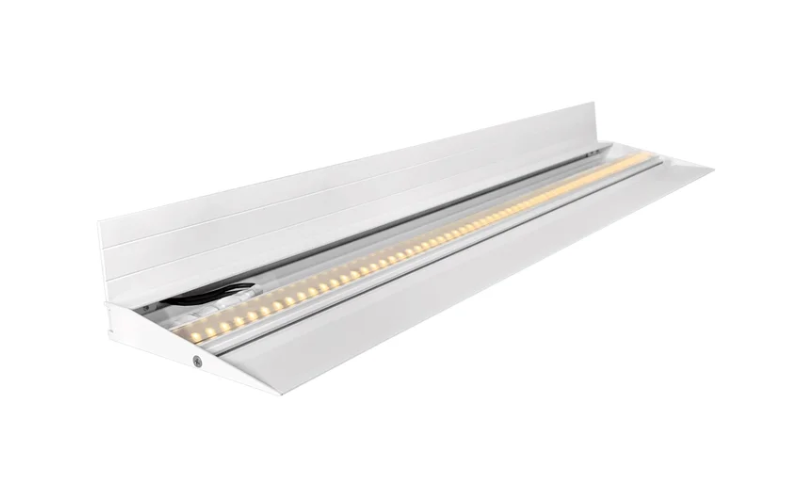

Knife Edge Ceiling Tunable White is another innovative design, coming from the family of plaster-in 24VDC systems, pioneered by PureEdge, that recess within 5/8" drywall without joist modification. With a true Knife Edge profile, there is no visible sightline of the lens or light shield, delivering a seamless, visual field across adjacent surfaces. The Knife Edge system generates a sophisticated and seamlessly sharp architectural element, providing consistent lighting across neighboring surfaces. It accommodates 5/8" thick drywall on its underside, making it suitable for architectural reveals, accent lighting, and surface mount applications. Our Designer-Grade High CRI Tunable White technology in 2000K-6500K (2K6K) or 2700K-6500K (27K6) grants independent control and adjustment of color temperature and intensity from 2000K (Sunset) through 6500K (Day Light White). Tunable white lighting visually, biologically and emotionally contributes to human interaction with the physical world. Human centric lighting (HCL) builds on this technology bringing the dynamics of natural daylight indoors, and delivering a positive effect on human health, wellbeing and performance. Remote Power supplies are required and sold separately. Coordinate installation with electrical and drywall contractors. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.5"L: Run length (Ft)H: 0.71"
- Light SourceLED
- CCT/ColorTunable White
- CRI90
- Watt(Approx)2.5 W/Ft5 W/Ft7.5 W/Ft10 W/Ft
- Lumens(Approx)230 Lm/Ft475 Lm/Ft670 Lm/Ft1015 Lm/Ft
- OpticsDirectAsymmetric/Wash
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling RecessedWall Recessed
- HousingFixture
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
