PureEdge Lighting

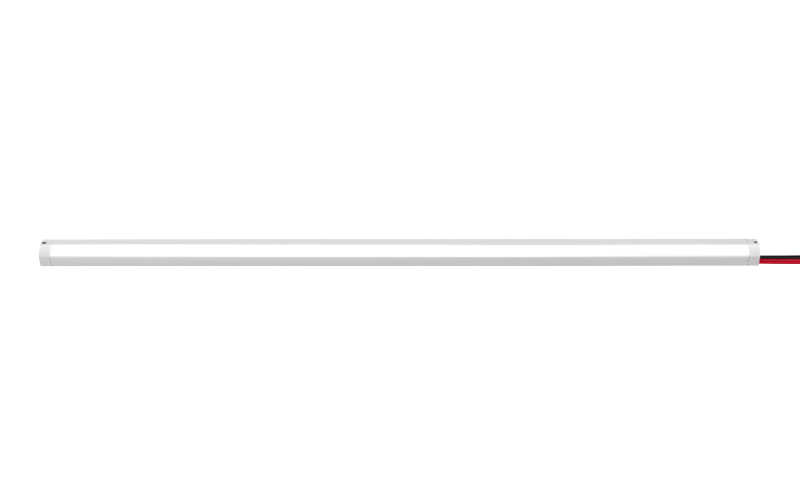

LC45. LIGHT CHANNEL 45° ANGLED COMPLETE FIXTURE 24VDC SURFACE MOUNT LIGHT CHANNEL, RGB.
Configure
Add to project
RESOURCES
DESCRIPTION
Light Channel 45° Angle Surface Mount Lighting System is a made-to-order complete fixture, purchased in nominal increments of 2", 3", 5", 8" and 10". Light Channels may be ordered from 12" up to 120" (10'). The 45° angle channel gives more flexibility to the designer when trying to place light where it is most difficult. For longer continuous runs, see DIY spec sheet. For custom quotes and layout assistance, send your drawings and ideas to our design team: design@PureEdgeLighting.com
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.9"L: Run length (inch)H: 0.9"
- Light SourceLED
- CCT/ColorRGB
- CRI
- Watt(Approx)4.4 W/Ft
- Lumens(Approx)
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%DMX
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- Environment
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLC45-RGB
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
