PureEdge Lighting

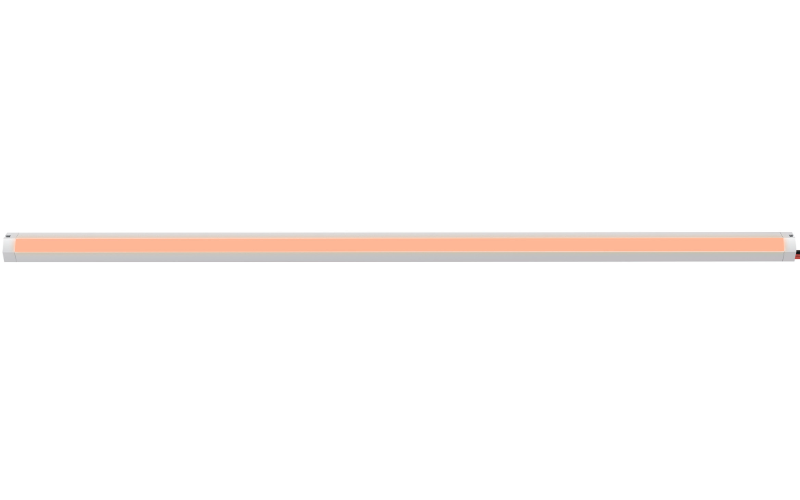

LC45. LIGHT CHANNEL COMPLETE FIXTURE 45° ANGLE 24VDC, SURFACE MOUNT, TUNABLE WHITE.
Configure
Add to project


RESOURCES
DESCRIPTION
PureEdge's 45° Surface-mounted Tunable White Light Channel is a versatile, made-to-order, 24VDC Class 2 luminaire. The channel's 45° angle design provides designers with enhanced flexibility when illuminating challenging areas. Offered in lengths from 12" to 120"(10') in 2" or 3" increments for precise sizing and available in three wattage options (2W, 5W & 7W). Tunable White 2000K-6500K (2K6K) or 2700K-6500K (27K6) grants independent control and adjustment of color temperature and intensity from 2000K (Sunset) through 6500K (Day Light White). Tunable white lighting visually, biologically, and emotionally contributes to human interaction with the physical world. Human-centric lighting (HCL) builds on this technology, bringing the dynamics of natural daylight indoors and delivering a positive effect on human health, well-being, and performance. With its combination of flexibility, customization, and lighting quality, the Light Channel 45° is an excellent choice for a wide range of applications. Click here for all Other Color Temperatures. For Field cuttable runs, see DIY spec sheet. Fixture includes a 5-year pro-rated warranty. For custom quotes and layout assistance, send your drawings and ideas to our design team: design@PureEdgeLighting.com
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.9"L: Run length (inch)H: 0.9"
- Light SourceLED
- CCT/ColorTunable White
- CRI93
- Watt(Approx)2.5 W/Ft4.6 W/Ft7.5 W/Ft
- Lumens(Approx)120 Lm/Ft268 Lm/Ft327 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10VDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLC45-TW
—
