PureEdge Lighting
LCMG.6. LIGHT CHANNEL 0.6 MICRO GRAZER SURFACE MOUNTCOMPLETE FIXTURE 24VDC LED SYSTEM DYNAMIC TUNABLE WHITE, WARM DIM LED TECHNOLOGY.
 Configure
 Add to project

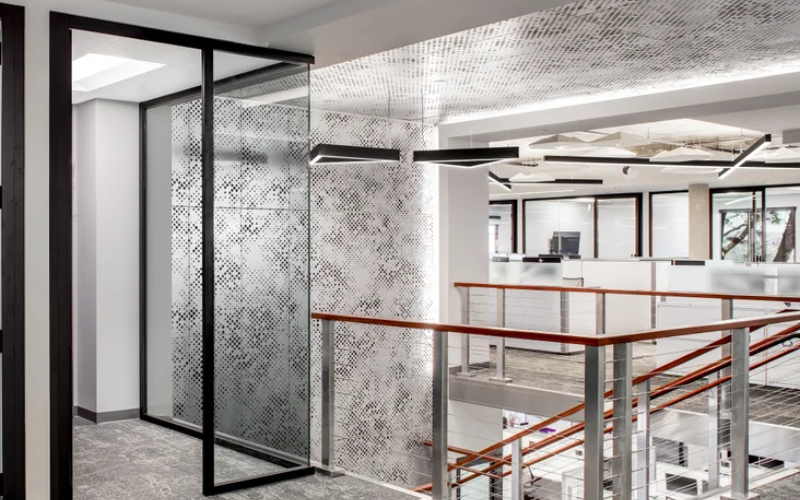

Pure Edge Lighting. LCMG6. Light Channel .6 Micro Grazer Complete Fixture.
Pure Edge Lighting. LCMG6. Light Channel .6 Micro Grazer Complete Fixture.
Pure Edge Lighting. LCMG6. Light Channel .6 Micro Grazer Complete Fixture.
Pure Edge Lighting. LCMG.6. LIGHT CHANNEL 0.6 MICRO GRAZER SURFACE MOUNTCOMPLETE FIXTURE 24VDC LED SYSTEM DYNAMIC TUNABLE WHITE, WARM DIM LED TECHNOLOGY.
RESOURCES
DESCRIPTION
  • Light Channel 0.6" Micro Grazer is a made-to-order complete fixture, purchased in nominal increments of 2", 3", 5", 8" and 10". Light Channels may be ordered from 12" all the way up to 120" (10'). For longer continuous runs, see DIY spec sheet.
  • 24VDC LED Strip provides up to 94+ CRI values offers excellent Designer Luxury Grade color rendering and fits inside a slim profile aluminum extrusion
  • Low voltage up to 100 watt. Class 2 wiring, eliminates the need for conduit
  • Power Consumption Options: 2.5W | 4.4W | 4.8W | 7.3W per foot
  • 7 LEDs per cutting increment provides 87.5% efficiency compared to six LEDs at only 75%. Solid State Power Supply offer 85-90% efficiency compared to magnetic at 80%. The combination of seven LEDs and a Solid State Power Supply increases the efficiency up to 22%.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 0.7"
    L: Run length (inch)
    H: 0.61"
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K5700KTunable WhiteRGBYellow/AmberRedGreenBlue
  • CRI
    85 95 84
  • Watt(Approx)
    5 W/Ft7.5 W/Ft
  • Lumens(Approx)
    486 Lm/Ft750 Lm/Ft
  • Optics
    DirectGrazing
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to <1%ELV/Reverse/Trailing0-10VLutron Hi-lume Premier 3-wire (L3D03W)
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V120V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETL
  • Environment
  • Mounting Type
    Ceiling Surface
  • Housing
  • Housing Depth
