LCMW45. LIGHT CHANNEL 45˚ DIY RECESSED MILLWORK 24VDC, STATIC WHITE & WARM DIM.
Configure
Add to project



RESOURCES
DESCRIPTION

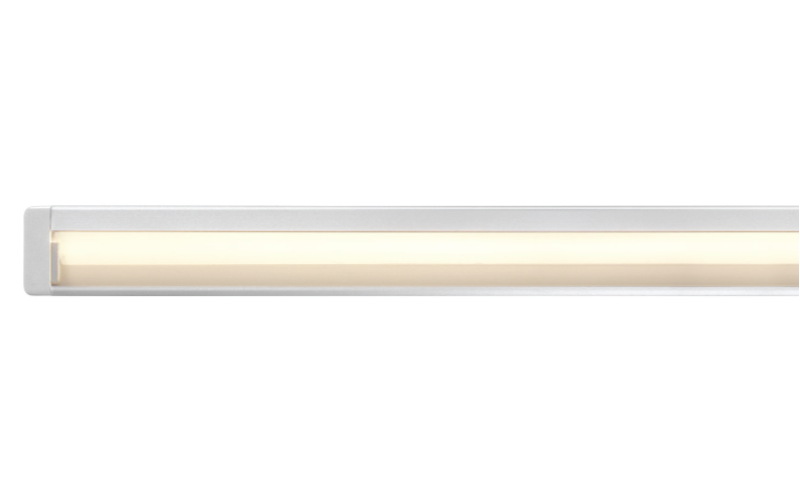

The DIY Light Channel 45° Recessed Millwork Series is designed for projects that demand a seamless aesthetic with exceptional glare-free illumination. Its shallow profile (3/8" high) integrates into a wide range of millwork depths, while the flat 1/16" finished flange provides a minimal, architectural look that enhances depth and dimension. This fixture blends effortlessly into its surroundings while delivering premium-quality task lighting-ideal for under cabinets, bathrooms, work surfaces, and more.

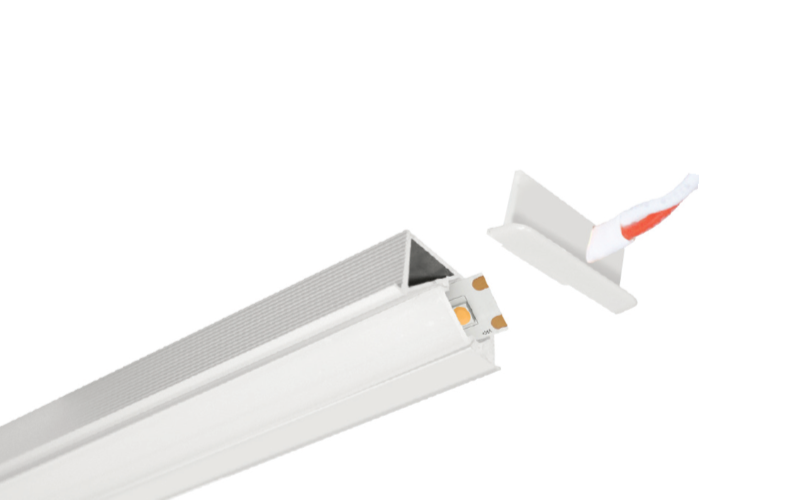

Crafted with slim aluminum channel extrusions, LED strips, and lenses, the system is fully field-cuttable and available in increments from 2 to 8 feet. A 5-year pro-rated warranty ensures lasting performance.
Crafted with slim aluminum channel extrusions, LED strips, and lenses, the system is fully field-cuttable and available in increments from 2 to 8 feet. A 5-year pro-rated warranty ensures lasting performance.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.31"L: Run length (inch)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI93 94 96
- Watt(Approx)2.5 W/Ft4.4 W/Ft
- Lumens(Approx)362 Lm/Ft703 Lm/Ft1446 Lm/Ft
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLADAT24*
- EnvironmentDamp
- Mounting TypeMillwork Recessed
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
