LCMW.6. LIGHT CHANNEL COMPLETE FIXTURE 0.6” MILLWORK 24VDC RECESSED.
Configure
Add to project



RESOURCES
DESCRIPTION

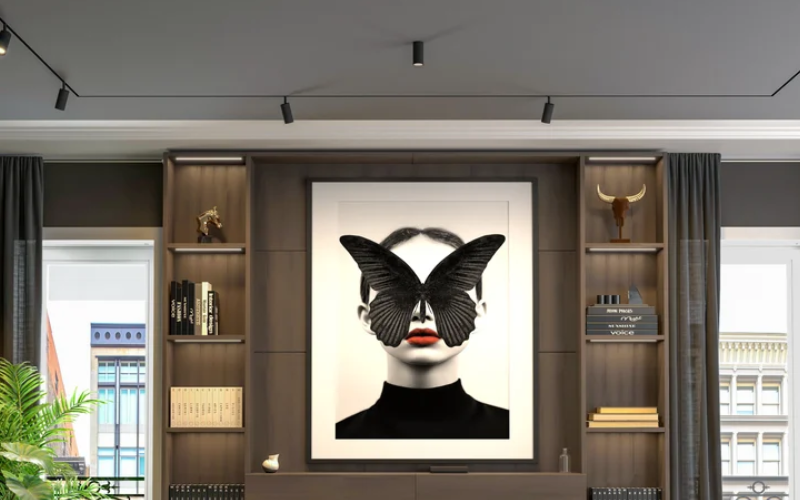

Light Channel .6" Recessed Millwork is tailored for projects requiring a seamless design with ample illumination. The shallow profile integrates into various depths of millwork, while the flat 1/8" finished flange offers a minimal aesthetic, enhancing spaces with depth and dimension, seamlessly blending into the architecture while delivering premium task lighting for applications like under cabinets, bathrooms, work surfaces, and more. Light Channel .6" Recessed Millwork is made-to-order, offered in 2, 5, or 7 watts per foot, and multiple static white color temperatures from 2400K to 4000K, with up to 95 CRI, ensuring outstanding color rendering. Available with a diffused white lens or clear lens for maximum light levels, with black or white louver options. Order in 2" or 3" increments from 12" up to 120" (10'). Click here for all Other Color Temperatures. Our Light Channels provide high-quality illumination and are simple to specify and install, making it easy to elevate any space; for Field cuttable runs, see DIY spec sheet. Includes a 5-year pro-rated warranty. For custom quotes and layout assistance, send your drawings and ideas to our design team: design@PureEdgeLighting.com
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.88"L: Run length (inch)
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K5700KTunable WhiteRGBYellow/AmberRedGreenBlue
- CRI85 90 95 84
- Watt(Approx)2.5 W/Ft4.4 W/Ft7.3 W/Ft
- Lumens(Approx)190 Lm/Ft351 Lm/Ft463 Lm/Ft
- OpticsDirectGrazingGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentDamp
- Mounting TypeMillwork Recessed
- HousingFixture
- Housing Depth0.61 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLCMW6
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
