LCMW.6. LIGHT CHANNEL 0.6” DIY RECESSED MILLWORK 24VDC, DO-IT-YOURSELF IN STATIC & TUNABLE WHITE, WARM DIM, RGB, MONOCHROMATIC COLOR & RGBTW.
Configure
Add to project



RESOURCES
DESCRIPTION

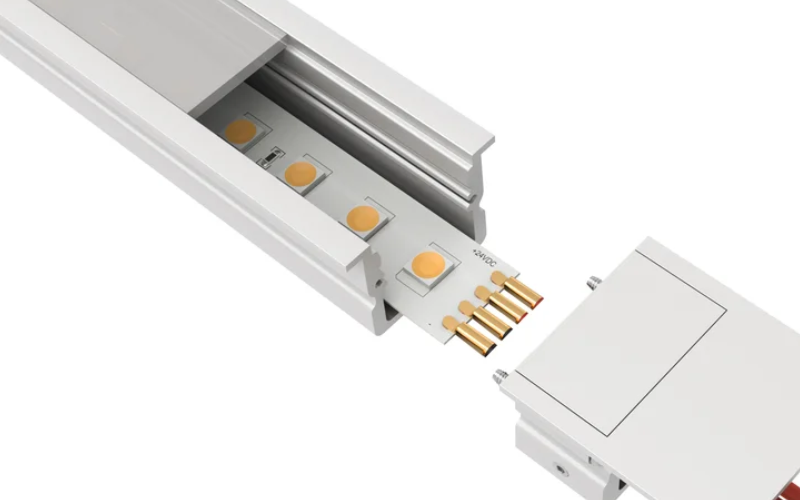

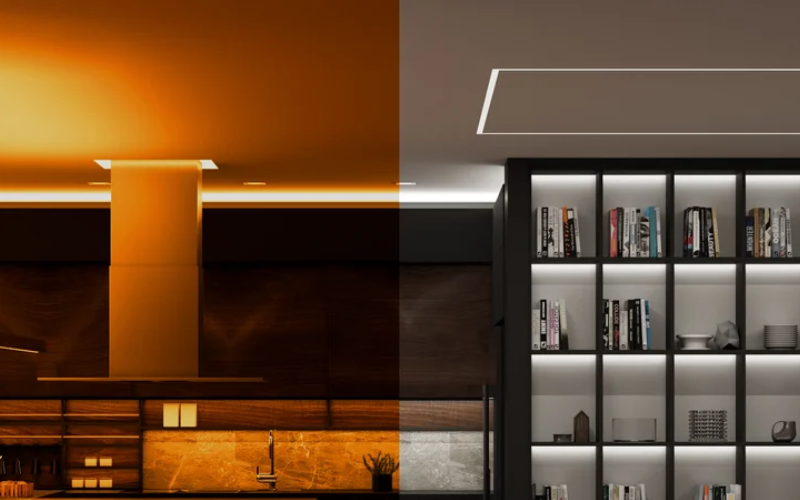

Our DIY (Do-it-Yourself) Light Channel .6" Recessed Millwork is tailored for projects requiring a seamless design with ample illumination. The shallow profile integrates into various depths of millwork, while the flat 1/8" finished flange offers a minimal aesthetic, enhancing spaces with depth and dimension, seamlessly blending into the architecture while delivering premium task lighting for applications like under cabinets, bathrooms, work surfaces, and more. Our slim, aluminum channel extrusions, LED strips, and lenses are field-cuttable and ordered in various increments anywhere from 2 to 7 watts per foot. Offered in a broad range of wattages and Color Temperatures from 2400K through 4000K, Warm Dim (27D or 30D), Pro- Dim (27KPD or 30KPD), Tunable White (2K6K or 27K6), Dynamic RGB, RGB+White in 2000K (special order in 27K, 30K and 40K), and TruColor™ RGBTW Color Changing RGB with Tunable White 1500K-6500K. Available with a diffused white or clear lens for maximum light levels, both offered with black or white louver options. Includes a 5-year pro-rated warranty. For custom quotes and layout assistance, send your drawings and ideas to our design team: design@PureEdgeLighting.com.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.88"L: Run length (Ft)
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000KTunable WhiteTunable White & ColorsRGBRGBWYellow/AmberRedGreenBlue
- CRI92
- Watt(Approx)2.5 W/Ft2.6 W/Ft4.4 W/Ft4.8 W/Ft5 W/Ft4.6 W/Ft6.3 W/Ft7 W/Ft7.3 W/Ft7.5 W/Ft
- Lumens(Approx)173 Lm/Ft179 Lm/Ft231 Lm/Ft362 Lm/Ft451 Lm/Ft500 Lm/Ft332 Lm/Ft669 Lm/Ft631 Lm/Ft548 Lm/Ft705 Lm/Ft554 Lm/Ft1033 Lm/Ft2380 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkWireless Dimming
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USAT24*
- EnvironmentDamp
- Mounting TypeMillwork RecessedDrywallT-Grid CeilingWood
- HousingFixture
- Housing Depth0.61 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
