PureEdge Lighting
LCMW.6. LIGHT CHANNEL COMPLETE FIXTURE 0.6'' RECESSED MILLWORK 24VDC, WARM DIM.
Configure
Add to project


RESOURCES
DESCRIPTION

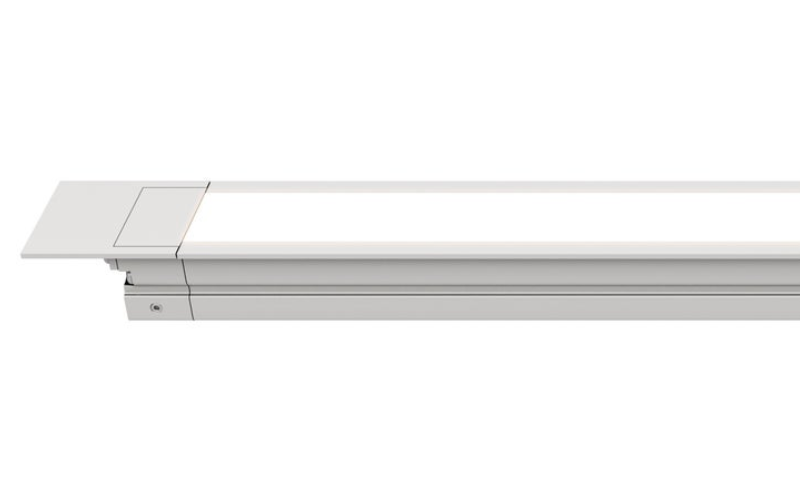

Light Channel .6" Recessed Millwork is tailored for projects requiring a seamless design with ample illumination. The shallow profile integrates into various depths of millwork, while the flat 1/8" finished flange offers a minimal aesthetic, enhancing spaces with depth and dimension, seamlessly blending into the architecture while delivering premium task lighting for applications like under cabinets, bathrooms, work surfaces, and more. Light Channel .6" Recessed Millwork is made-to-order, offered in two variations of Warm Dim (27D & 30D). Our Warm Dim technology mimics an incandescent atmosphere by decreasing the color temperature as you dim. Our Warm Dim strips can be dimmed all the way down to a soothing amber hue at 1800K. Available with a diffused white lens or clear lens for maximum light levels, both are offered with black or white louver options. Order in 3" increments from 12" up to 120" (10'). Click here for all Other Color Temperatures. Our Light Channels provide high-quality illumination and are simple to specify and install, making it easy to elevate any space; for Field cuttable runs, see DIY spec sheet. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.88"L: Run length (inch)
- Light SourceLED
- CCT/Color2700K Dim to Warm3000K Dim to Warm
- CRI92
- Watt(Approx)4.8 W/Ft
- Lumens(Approx)313 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkWireless Dimming
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USAT24*
- EnvironmentDamp
- Mounting TypeMillwork RecessedWood
- HousingFixture
- Housing Depth0.61 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
LCMW6-WD
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
