PureEdge Lighting

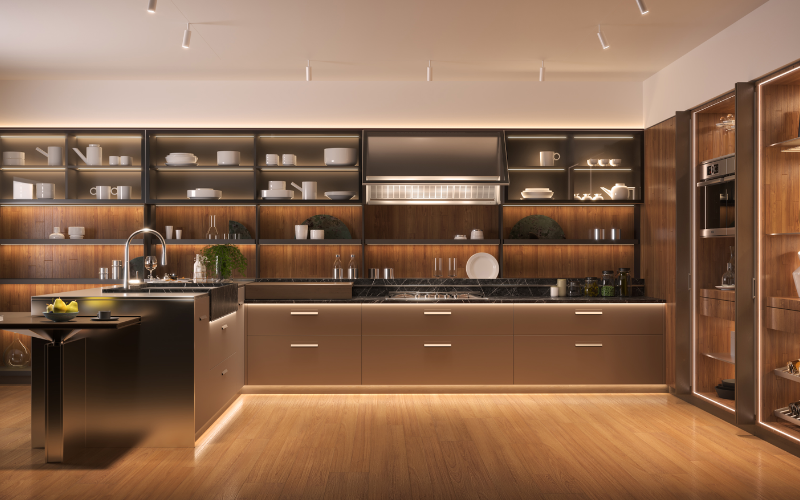

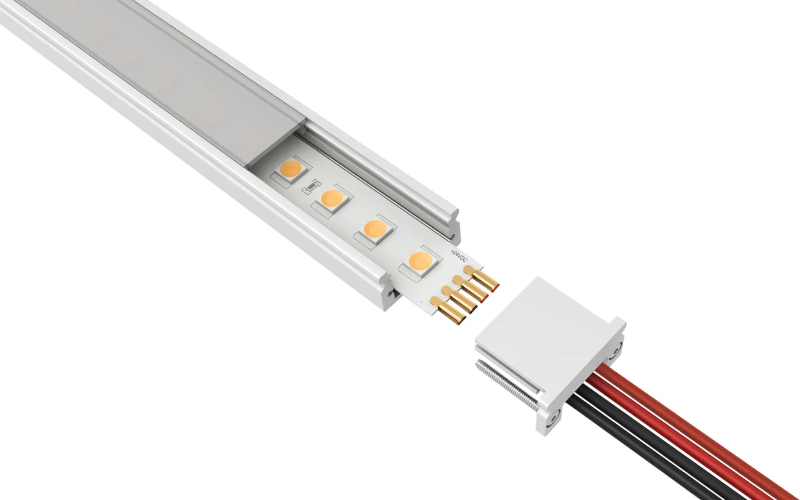

LCS.3. LIGHT CHANNEL 0.3” DIY SURFACE MOUNT 24VDC LED DO-IT-YOURSELF DYNAMIC WHITE/TUNABLE WHITE, WARM DIM, RGB.
 Configure
 Add to project
DESCRIPTION
Functional and Architectural, our new generation of 0.3" DIY (Do-It-Yourself) light channel delivers smooth, continuous light without pixelation, using our patented Lazer Strip with remote phosphor technology. The diffused lens also ensures pixel-free illumination when paired with Soft Strip. The slim and shallow profile is less than 3/8" high, field-cuttable, and available with three lens options. Offered in a broad range of wattages and color temperatures, including Static White (2400K - 4000K), Monochromatic Color (RZ, BZ, GZ, AZ), Tunable White (2K6K), Dynamic RGB (all color temperatures with Lazer Strip), and TruColor™ RGBTW (RGB with Tunable White 1500K – 6500K), featuring our proprietary 5-channel color-changing technology. 24VC, Class 2 remote power supplies can be located up to 40 feet away. Includes a 5-year pro-rated warranty. For custom quotes and layout assistance, send your drawings and ideas to our design team: design@PureEdgeLighting.com.


MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 0.7"
    L: Run length (inch)
    H: 0.35"
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000KTunable WhiteTunable White & ColorsRGBYellow/AmberRedGreenBlue
  • CRI
    85
  • Watt(Approx)
    2.5 W/Ft2.6 W/Ft3.3 W/Ft4.4 W/Ft4.8 W/Ft5 W/Ft4.6 W/Ft7 W/Ft
  • Lumens(Approx)
    173 Lm/Ft242 Lm/Ft391 Lm/Ft492 Lm/Ft362 Lm/Ft451 Lm/Ft500 Lm/Ft410 Lm/Ft669 Lm/Ft631 Lm/Ft554 Lm/Ft
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)DMX
  • Controls/Network
  • Power/Voltage
    Remote
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLRoHS
  • Environment
    Damp
  • Mounting Type
    Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
