PureEdge Lighting

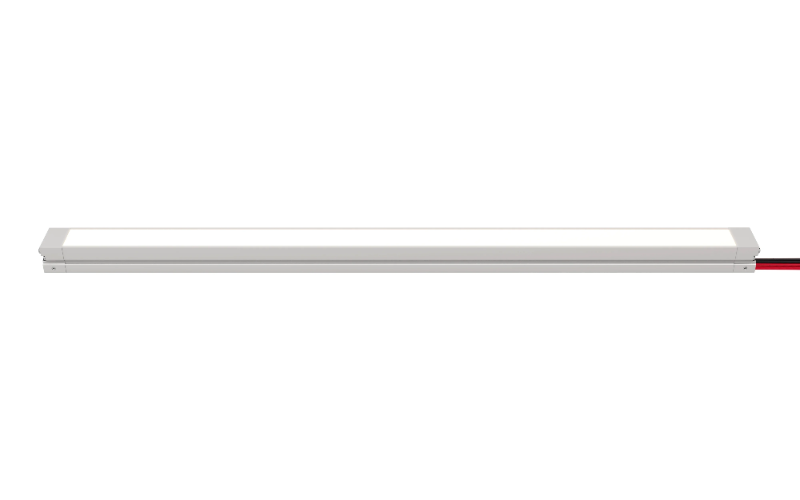

LCS.6. LIGHT CHANNEL COMPLETE FIXTURE 0.6'' SURFACE MOUNT24VDC SURFACE MOUNT LIGHT CHANNEL WITH DYNAMIC/TUNABLE WHITE, WARM DIM LED TECHNOLOGY.
 Configure
 Add to project
Pure Edge Lighting. LCS6. Light Channel .6 Surface Mount Complete Fixture.
Pure Edge Lighting. LCS6. Light Channel .6 Surface Mount Complete Fixture.
Pure Edge Lighting. LCS6. Light Channel .6 Surface Mount Complete Fixture.
Pure Edge Lighting. LCS.6. LIGHT CHANNEL COMPLETE FIXTURE 0.6'' SURFACE MOUNT24VDC SURFACE MOUNT LIGHT CHANNEL WITH DYNAMIC/TUNABLE WHITE, WARM DIM LED TECHNOLOGY.
RESOURCES
DESCRIPTION
Light Channel 0.6" Surface Mount System is a made-to-order complete fixture, purchased in nominal increments of 2", 3", 5", 8" and 10". Light Channels may be ordered from 12" all the way up to 120" (10'). For longer continuous runs, see DIY spec sheet.


MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 0.7"
    L: Run length (inch)
    H: 0.61"
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K5700KTunable WhiteRGBYellow/AmberRedGreenBlue
  • CRI
    85 95 84
  • Watt(Approx)
    2.5 W4.4 W7.5 W
  • Lumens(Approx)
    190 Lm351 Lm542 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to <1%ELV/Reverse/Trailing0-10VLutron Hi-lume Premier 3-wire (L3D03W)
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V120V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETL
  • Environment
    Damp
  • Mounting Type
    Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
