LCS.6. LIGHT CHANNEL 0.6 DIY SURFACE MOUNT 24VDC, DO-IT-YOURSELF IN STATIC & TUNABLE WHITE, WARM DIM, RGB, MONOCHROMATIC COLOR &

LCS6-DIY

Lead time Cost —

SPEC SHEET WHERE TO BUY MANUFACTURER'S PAGE

PureEdge Lighting

LCS.6. LIGHT CHANNEL 0.6 DIY SURFACE MOUNT 24VDC, DO-IT-YOURSELF IN STATIC & TUNABLE WHITE, WARM DIM, RGB, MONOCHROMATIC COLOR & RGBTW.
SPECIFICATIONS

CONFIGURATOR

Dimensions
W: 0.7"
L: 2 Ft4 Ft5 Ft8 Ft10 FtRun length (inch)
H: 1" or less
Light Source
LED
CCT/Color
2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K5700KTunable White
CRI
92 94 95
Watt^(Approx)
2.5 W/Ft4.4 W/Ft7.5 W/Ft
Lumens^(Approx)
361 Lm/Ft629 Lm/Ft1025 Lm/Ft
Optics
DirectGeneral Diffused
Adjustable
Dimming
Dim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-Lume 3DLutron Hi-Lume 2-wire (LTEA)DMX
Controls/Network
Wireless Dimming
Power/Voltage
RemoteUNV 120-277V120V
Integral Emergency
Lumen Maintenance
Certificates
ETLMade in USAADAT24*
Environment
Mounting Type
Surface
Housing
Housing Depth

Description:

DESCRIPTION

DIMENSIONS

LIGHT SOURCE

WATT/LUMENS

POWER/CONTROLS

i You reconfigured the product. To remove this message please update you custom description.

SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.

CONFIGURATOR

Marks unavailable product configuration, refer to manufacturer’s documentation for details

BUILD CATALOG NUMBER

PRODUCT DESCRIPTION
—

24VDC LED Stomp Strip is high performance, highly durable and designed to withstand the harsh elements of a job site, including stomping and twisting
Gold Plated Contacts prevent oxidation ensuring longevity of the LEDs
35 LED diodes per foot provide high performance and clean, uniform light distribution without diodes when used with a diffused lens.
Cut and assemble in field.

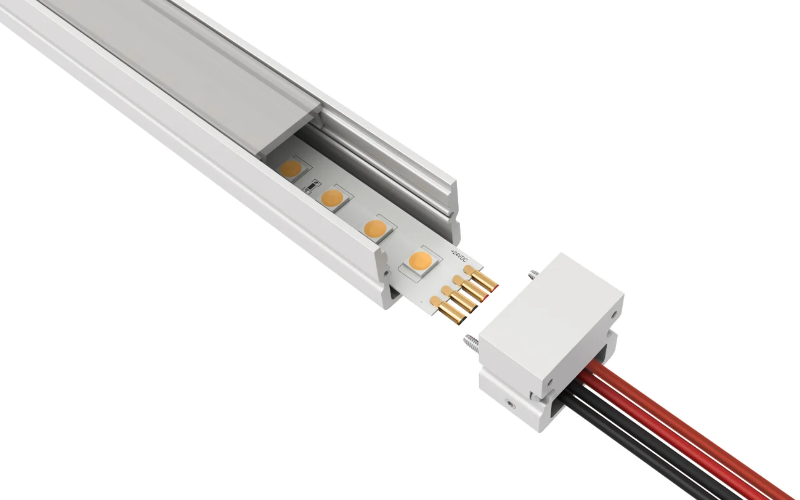

Snap & Light Solderless Connections reduce labor during installation
24VDC LED Strip offers excellent color-rendering
Warm Dim/Dim-To-Warm: dims from 3000K to 2000K (30D), dims from 2700K to 2000K (27D). 5 watt only.
Gel Diffused Lens (G) provided by the customer please visit www.leefilters.com for more information.
Static White Options: 2.5W I 5W I 7.5W options. Color temperatures ranging from 2000K to 5700K.
Static White Options: 2.5W I 5W I 7.5W options. Color temperatures ranging from 2000K to 5700K.
Tunable White: 2000K-6500K (2K6K) or 2700K-6500K (27K6)
Dynamic Color: (RGB)
Static Color: Amber (AAA), Green (GGG), Blue (BBB), Red (RRR)
5 year pro-rated warranty included
