PureEdge Lighting
NCWG. NOVA CEILING WALL GRAZER WITH REMOTE POWER.
Configure
Add to project




RESOURCES
DESCRIPTION

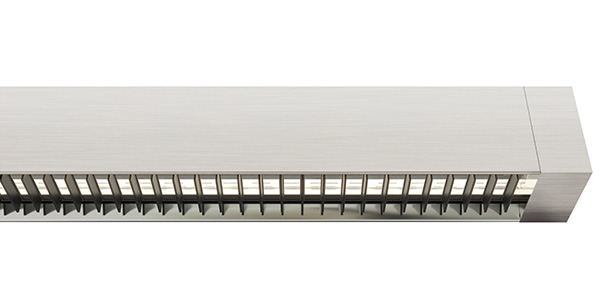

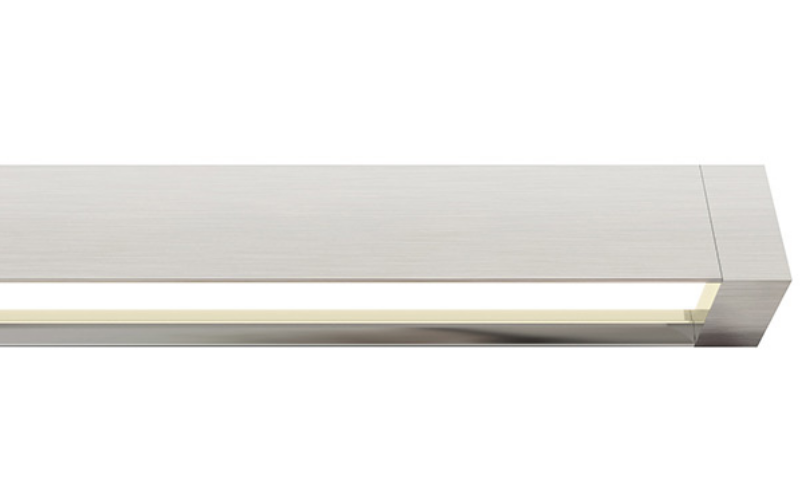

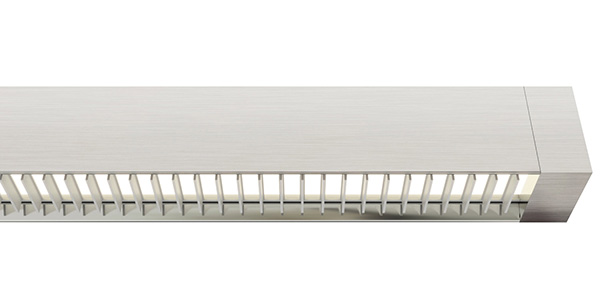

The Nova Ceiling Wall Grazer offers direct, crisp, up to 95+ CRI light in a clean and contemporary style. The Nova Ceiling Wall Grazer offers multiple power and mounting options. The 4.6" Floating Square Canopy mounts to a standard square junction box anywhere along the fixture. The 1" Rectangle (1RE) J-Box (included) offers a power connection option that is hidden for a more streamlined look. Components included with the system; 8' Power Cable, 1/2" ceiling mounted standoffs provided every 2' for fixture support at the ceiling. Pre-Wired for Remote Power Supplies up to 100 Watts or add a PS-60L-ELV-24VDC that fits inside J-box for total watts under 50W (Power Supplies Sold Separately). Lengths range from 12" to 240" and can be ordered in various increments. Comes with a 20° beam spread lens and optional Black or White Louvers along with a variety of finishes. Offering the latest in LED technology Tunable White, Warm Dim options and RGB. Fixture includes a 5 year prorated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.24"L: Run length (Ft)H: 1.39"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K5700KTunable WhiteRGB
- CRI85 95 84
- Watt(Approx)4.4 W/Ft7.3 W/Ft10 W/Ft
- Lumens(Approx)355 Lm/Ft565 Lm/Ft667 Lm/Ft
- OpticsDirectGrazing
- Adjustable
- DimmingDim to 3-10%Dim to <1%ELV/Reverse/Trailing0-10VLutron Hi-lume Premier 3-wire (L3D03W)DMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- Environment
- Mounting TypeCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
