PureEdge Lighting

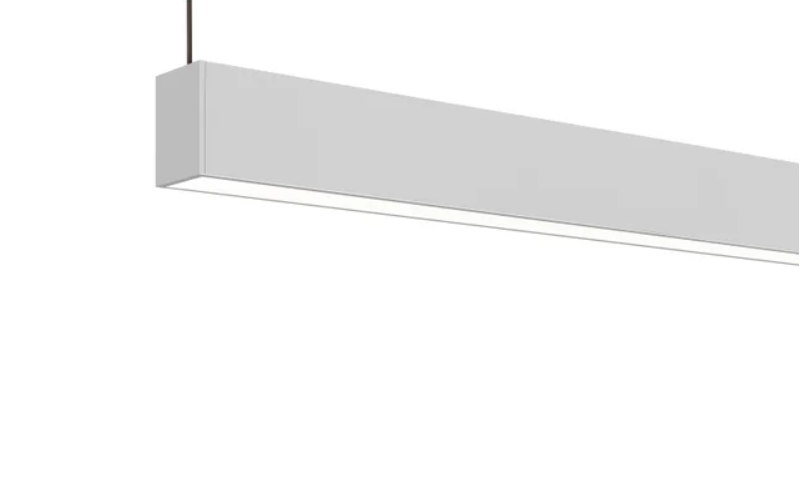

NM. NIMBUS DIRECT/INDIRECT END FEED LED SUSPENSION WITH INTEGRAL SMART POWER SUPPLY, TRUCOLOR RGBTW.
Configure
Add to project


RESOURCES
DESCRIPTION
Nimbus Suspension batwing indirect and direct with separate controls allow RGBTW up and down with independent dimming on each channel. End feed Canopy comes with an integral 120 volt Pure Smart WiZ Connected power supply in the center of fixture. The Nimbus Up/Down Linear Suspension is available in various increments from 3 feet to 80 feet . The Downlight has a Diffused White lens with a 100° beam spread and a Bat Wing 135 Degree Lens on the Up-light. Offered in several metallic finishes and paired with the TruColor RGBTW Light Engine. Pure Smart TruColor™ technology uses five channels of tunable LEDs, composed of RGBTW red, green, blue and Tunable White (1500K-6500K). With our precision-engineered, proprietary color mixing, we produce one of the widest, most accurate spectrums available, giving our customers access to the warm glow of the sunset (1500K-2400K golden hour) to the pure white light of the mid-day sun (5700K) and everything in between. Dynamic Color Changing functionality provides millions of possibilities for intricate customization, rich saturated secondary colors, and unprecedented ease of installation, making RGBTW the ideal choice for residential and commercial applications. Includes a 5-year prorated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.75"L: Run length (Ft)H: 2.8"
- Light SourceLED
- CCT/ColorTunable White & ColorsRGBW
- CRI90
- Watt(Approx)10 W/Ft12 W/Ft14 W/Ft19 W/Ft20 W/Ft
- Lumens(Approx)814 Lm/Ft
- OpticsDirect/IndirectBatwing Indirect/General Direct
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageIntegral
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLRoHS
- Environment
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
