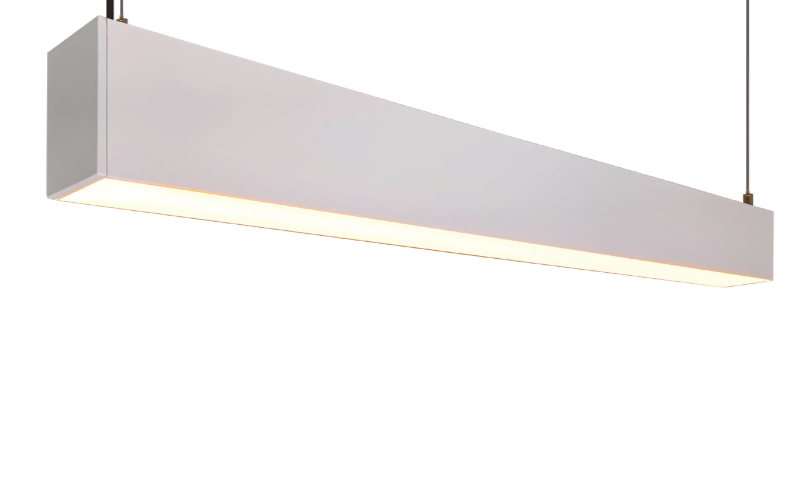

NMD. NIMBUS SUSPENSION STATIC AND WARM DIM 120-277V INTEGRAL DRIVER, DIRECT & INDIRECT.
Configure
Add to project
RESOURCES
DESCRIPTION
Indirect and direct illumination in a narrow 2.8" x 1.75" aluminum extrusion. Batwing indirect and direct diffused acrylic lens for uninterrupted smooth illumination. One or two zone options for independent dimming or Pure Smart WiZ connected wireless solution. Choose from several metal finishes and multiple standard color temperatures. Includes a 5 year prorated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.75"L: Run length (Ft)H: 2.8"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3000K Dim to Warm3500K4000K
- CRI90 95 92 85
- Watt(Approx)5 W/Ft7.5 W/Ft10 W/Ft12 W/Ft14 W/Ft20 W/Ft
- Lumens(Approx)546 Lm/Ft845 Lm/Ft1281 Lm/Ft1057 Lm/Ft1356 Lm/Ft1643 Lm/Ft2490 Lm/Ft
- OpticsDirectDirect/IndirectGeneral DiffusedBatwing Indirect/General Direct
- Adjustable
- DimmingDim to 3-10%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLRoHS
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeNMD
