PureEdge Lighting
NSDM. NOVA SUSPENSION DOWNLIGHT MODULAR - REMOTE POWER.
 Configure
 Add to project
Pure Edge Lighting.
Pure Edge Lighting.
PureEdge Lighting. NSDM. NOVA SUSPENSION DOWNLIGHT MODULAR - REMOTE POWER.
RESOURCES
DESCRIPTION

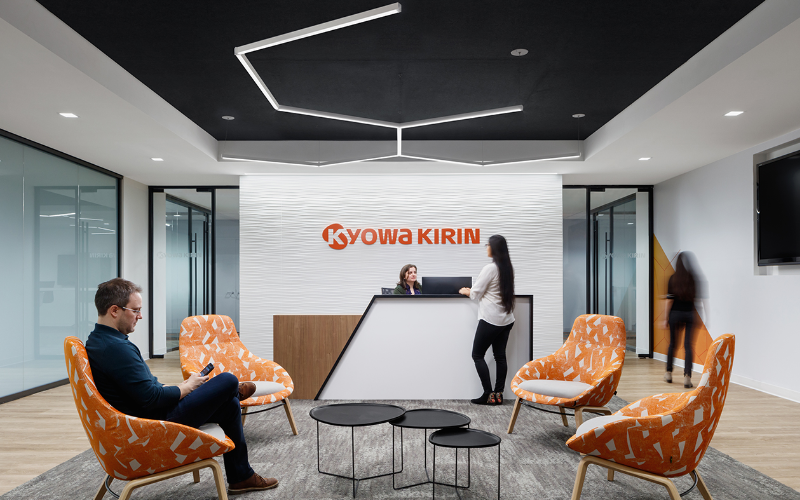

The Nova Suspension LED Modular System combines the Nova Suspension Channel with modular L, T, X, Y and Flexible connectors that build geometric configurations and allow you to be the fixture designer. We provide layout and direction for easy installation. The Nova suspension features a clean and continuous, direct beam of light housed within a sleek metal channel with an architectural aesthetic. Available in various increments from 12" to 120", a 100° or 60° beam spread, and Black or White Louver for additional diffusion. Choose from several Metal finishes and multiple Color Temperatures ranging from 2000K to 4000K, including two Warm Dim options of 2700K (27D) or 3000K (30D) that dim down to 2000K. Remote 24VDC power supplies are required and ordered separately. Fixtures include a 5 year pro-rated warranty. Send us your design ideas and we will provide the layout, parts list, and directions for easy installation: Design@PureEdgeLighting.com.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1.24"
    L: Run length (Ft)
    H: 1.39"
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K
  • CRI
    90 95 92 85
  • Watt(Approx)
    4.4 W/Ft7.3 W/Ft9.6 W/Ft
  • Lumens(Approx)
    396 Lm/Ft645 Lm/Ft836 Lm/Ft
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V120V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    ETLT24*
  • Environment
    Healthcare General
  • Mounting Type
    Ceiling Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
