NSDP. NOVA DOWNLIGHT END FEED LED SUSPENSION WITH POWER.
Configure
Add to project




RESOURCES
DESCRIPTION

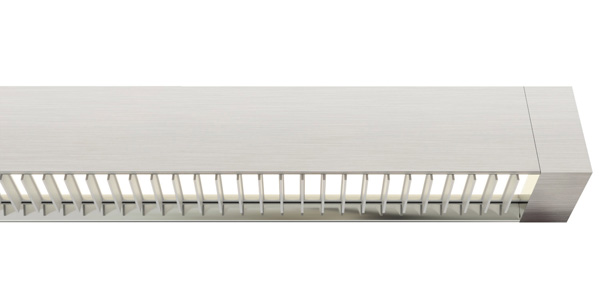

Nova Downlight End Feed Suspension with 24VDC power is a linear LED fixture that offers Direct light in a clean and contemporary style with an architectural aesthetic. With your choice of three wattage options, various increments from 12" to 240", several Metal finishes and, nine standard Color Temperatures ranging from 2200K to 5700K, including two Warm Dim options of 2700K (27D) or 3000K (30D) that dim down to 2000K, the Nova Downlight suspension allows you to create the perfect fixture for any space. The Downlight has two lens options; a Diffused White Lens with a 100° beam spread or Clear Frosted Lens with a 60° beam spread. Add a Black or White Louver for additional diffusion. Fixture includes a 5 year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.24"L: Run length (inch)H: 1.39"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K5700KTunable White
- CRI85 95 84
- Watt(Approx)4.4 W/Ft7.5 W/Ft9.6 W/Ft
- Lumens(Approx)355 Lm/Ft565 Lm/Ft667 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%ELV/Reverse/Trailing
- Controls/Network
- Power/VoltageIntegral120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- Environment
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
NSDP-E
—
