NSUDD. NOVA UP AND DOWN END FEED LED SUSPENSION WITH REMOTE POWER.
Configure
Add to project
RESOURCES
DESCRIPTION

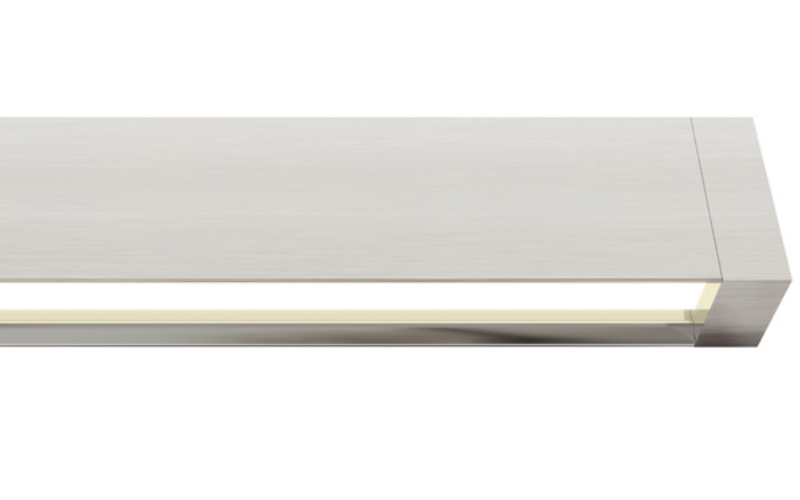

Nova Suspension Up/Down end feed using a Remote 24VDC power supply (sold separately) is a linear LED fixture that offers both direct and indirect light in a clean, contemporary style with an architectural aesthetic. The Nova Up/Down Linear Suspension is available in various increments from 12" to 240". The Downlight has a Diffused White lens with a 100° beam spread and a Clear Frosted 60° Lens Up-light. Choose from several Metal finishes and multiple Color Temperatures ranging from 2200K to 5700K, including two Warm Dim options of 2700K (27D) or 3000K (30D) that dim down to 2000K. Optional Black or White Louver for additional diffusion. Remote Power supplies sold separately. Fixture includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.24"L: Run length (inch)H: 2.23"
- Light SourceLED
- CCT/Color2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K5700K
- CRI95 85 84
- Watt(Approx)7.5 W/Ft10 W/Ft12 W/Ft
- Lumens(Approx)649 Lm/Ft854 Lm/Ft920 Lm/Ft
- OpticsDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to <1%ELV/Reverse/Trailing0-10VLutron Hi-lume Premier 3-wire (L3D03W)DMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- Environment
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
