PureEdge Lighting
P2WDP. PIPELINE 2 WALL/VANITY24VDC CENTER FEED STATIC WHITE & WARM DIM.
Configure
Add to project



RESOURCES
DESCRIPTION

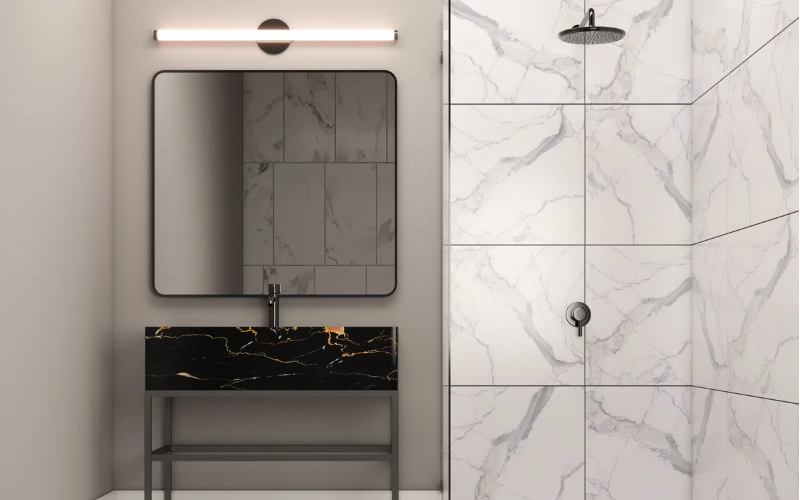

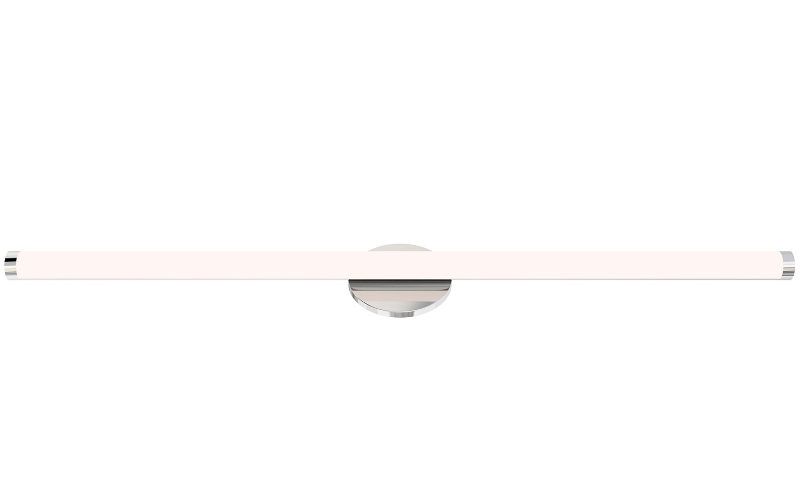

The Pipeline 2 Vanity with Floating Canopy is a slender yet powerful linear LED with multiple finish and hardware options making it the perfect fixture for almost any environment, including minimal and transitional spaces. Choose from multiple Color Temperatures from 2400K-4000K, including two Warm Dim options of 2700K (27D) or 3000K (30D) that dim down to 2000K. The 280° diffused white lens provides clean, uninterrupted illumination in all directions and is available in many standard incremental lengths up to 120". Available in four fine metal finishes with multiple mounting and hardware options. The Pipeline 2 vanity is offered with two types of power options; P2WDP has an electronic low voltage (ELV) power supply that fits inside junction box and is included, P2WDR has a Remote Universal Power Supply (sold separately). For custom designs and quotes,email our design team: design@PureEdgeLighting.com.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.25"L: Run length (inch)H: 1.25"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K
- CRI90 95
- Watt(Approx)4.4 W/Ft7 W/Ft
- Lumens(Approx)682 Lm/Ft986 Lm/Ft
- OpticsOmni-DirectionalGeneral Diffused
- Adjustable
- DimmingDim to 3-10%ELV/Reverse/Trailing
- Controls/Network
- Power/VoltageRemote120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USAADAT24*
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeP2WDP-C4R
—
