RV. REVEAL COVE & PATHWAY RGBTW 24VDC PLASTER-IN LED SYSTEM, 5 CHANNEL WIRELESS CONTROL.
Configure
Add to project



RESOURCES
DESCRIPTION

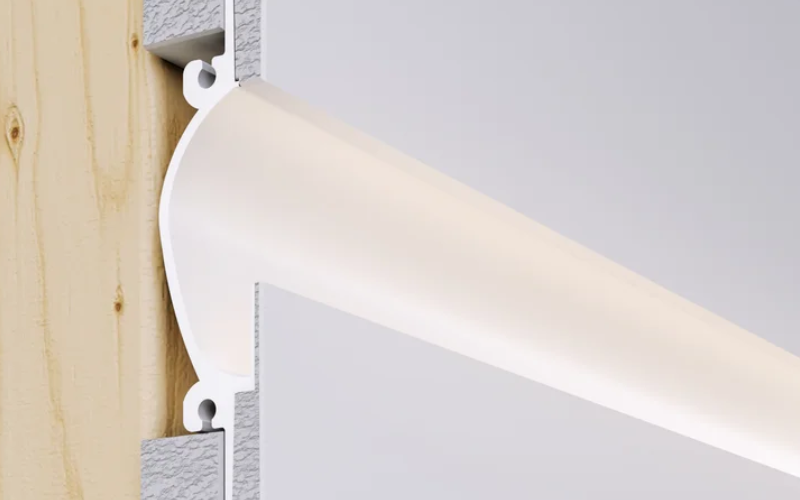

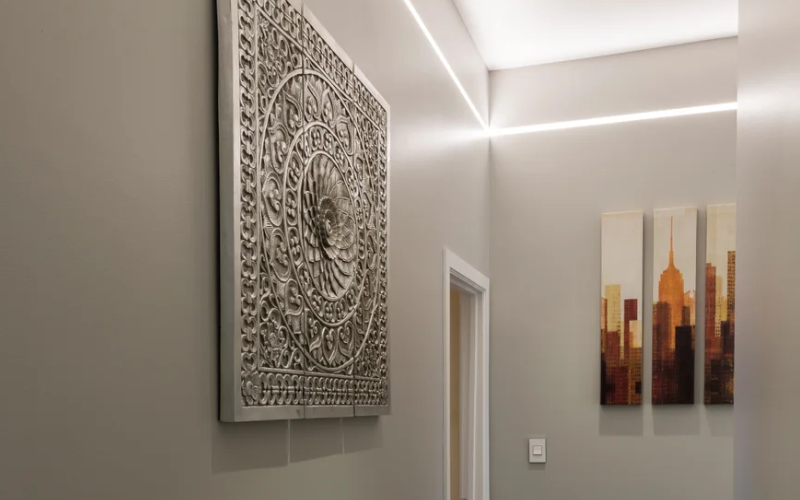

Reveal Cove/Pathway is Plaster-in 24VDC LED system that Recesses within 5/8" drywall without any joist modification. Redefining the relationship between lighting and interior design, this innovative system blends seamlessly into the drywall, accenting architecture and serves as a practical wayfinding application. The slim extrusions and LED strips are field-cuttable and ordered in 1' increments (up to 20' before re-feeding). Multiple runs of channel mount flawlessly together providing smooth and glare-free general illumination using designer-grade color rendering LEDs (94+ CRI). With the ability to run in horizontal and diagonal directions, the compositions are truly endless. The Reveal Cove/Path with TruColor™ RGBTW light engine requires Pure Smart™ controls for operation. The Reveal Cove/Pathway is offered in multiple wattage and color temperatures. Includes a 5 year pro-rated warranty. For custom quotes and layout assistance, send your drawings and ideas to our design team: design@PureEdgeLighting.com.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: Run length (Ft)H: 1.79"
- Light SourceLED
- CCT/ColorTunable White & Colors
- CRI94
- Watt(Approx)4.4 W/Ft7.5 W/Ft9.6 W/Ft
- Lumens(Approx)194 Lm/Ft261 Lm/Ft315 Lm/Ft
- OpticsDirectAsymmetric/Wash
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeWall RecessedDrywall
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeRV-RGBTW
—
