PureEdge Lighting

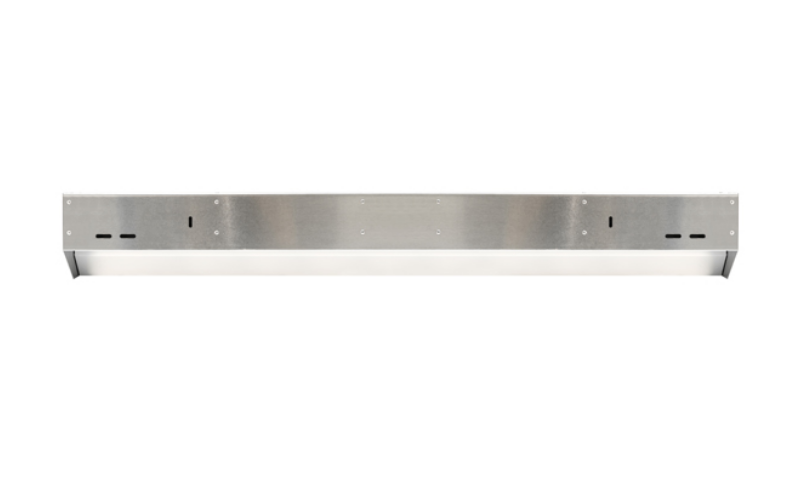

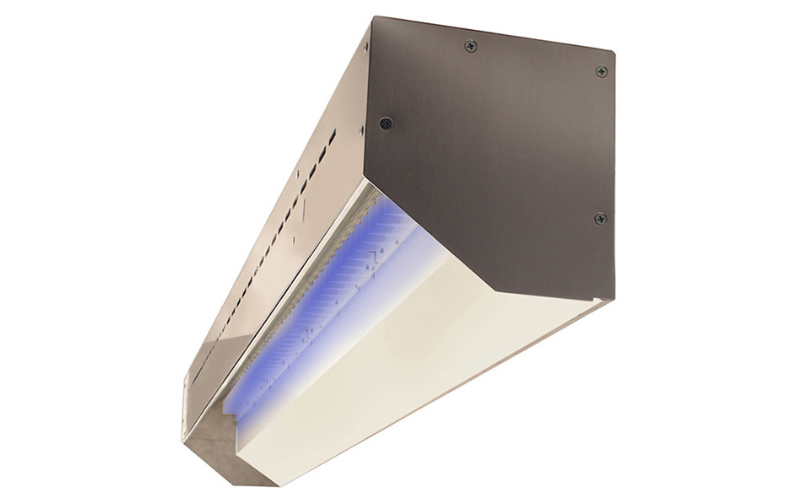

SH4.STRATUS LED LINEAR WALL GRAZER.
Configure
Add to project
RESOURCES
DESCRIPTION
LEDs are field replaceable. Fixture is Non-IC rated. Suitable for new residential, new commercial, and remodel. Lights textured walls up to 30' high. Mounts flush to ceilings or recessed within a pocket cove for the most dramatic effect. Link multiple Stratus fixtures to create long runs. Includes one internal LED Power Supply per unit. (0-10V for WW and CW; DMX for RGB). Feed fixture with 120V-240V. Coordinate installation with electrician and drywall contractors.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.5"L: 1 Ft4 FtH: 5.64"
- Light SourceLED
- CCT/Color3000K4000K
- CRI90
- Watt(Approx)15 W/Ft
- Lumens(Approx)670 Lm/Ft804 Lm/Ft
- OpticsDirectGrazing
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USARoHS
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
