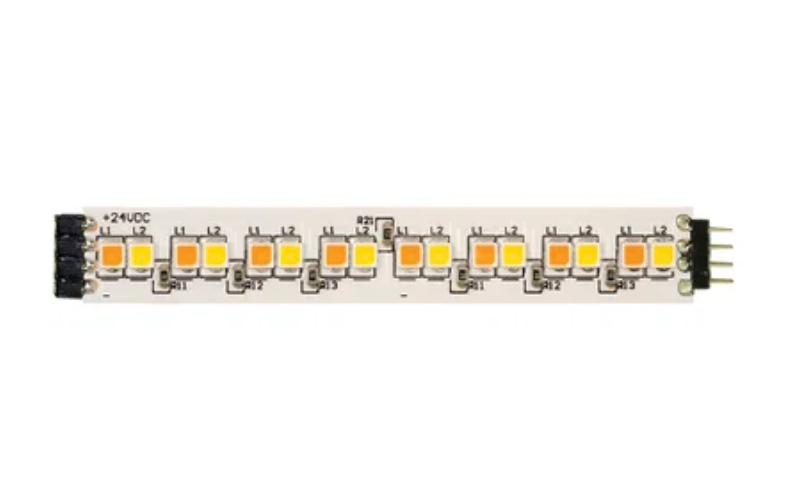

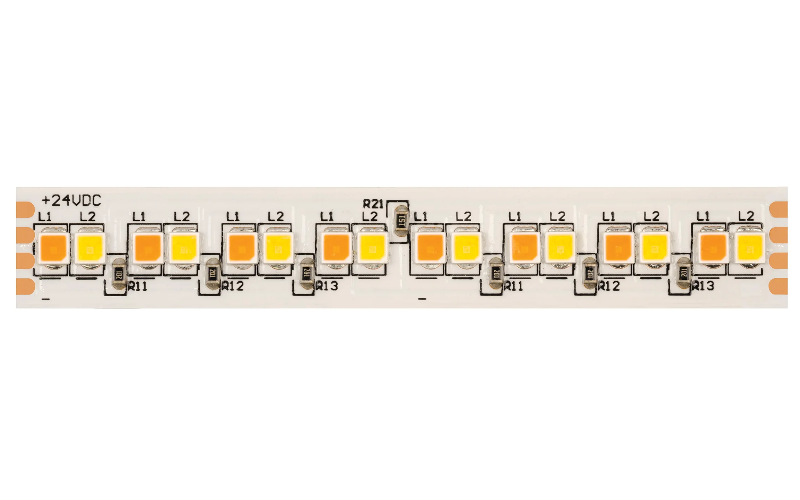

STA. STOMP STRIP TUNABLE WHITE 24VDC WITH PINS, SOLDERED LEADS OR SNAP & LIGHT CONNECTORS.
Configure
Add to project
RESOURCES
DESCRIPTION
Our Low Voltage Tunable White Stomp Strip is highly durable, designed to withstand the harsh elements of a job site, and precision engineered to provide superior color rendering up to 94+ CRI. Tunable White 2000K-6500K (2K6K) or 2700K-6500K (27K6) grants independent control and adjustment of color temperature and intensity from 2000K (Sunset) through 6500K (Day Light White). Tunable white lighting visually, biologically and emotionally contributes to human interaction with the physical world. Human centric lighting (HCL) builds on this technology bringing the dynamics of natural daylight indoors, and delivering a positive effect on human health, wellbeing and performance. Stomp Strip is used for our BIY (Build-it-Yourself) & DIY (Do-it-Yourself) fixtures and systems
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.4"L: Run length (Ft)H: 0.22"
- Light SourceLED
- CCT/ColorTunable White
- CRI94
- Watt(Approx)2.5 W/Ft4.6 W/Ft7.3 W/Ft9.6 W/Ft
- Lumens(Approx)242 Lm/Ft452 Lm/Ft610 Lm/Ft1069 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10VDMX
- Controls/NetworkWireless Dimming
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLRoHS
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSTA-TW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
