PureEdge Lighting

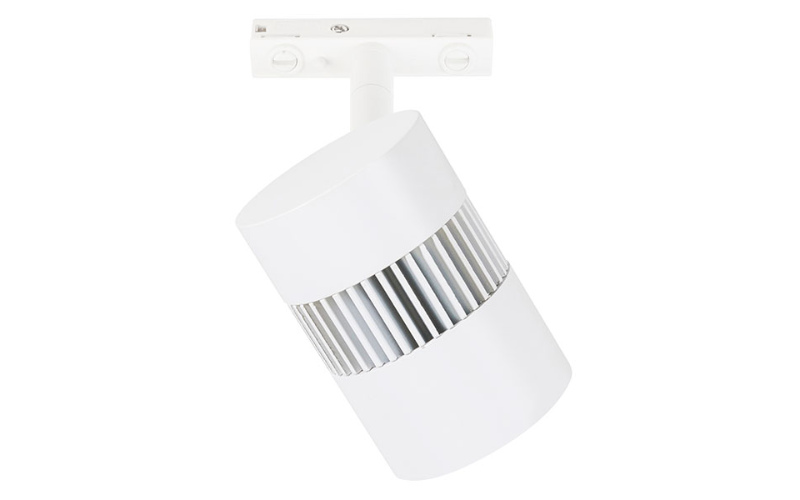

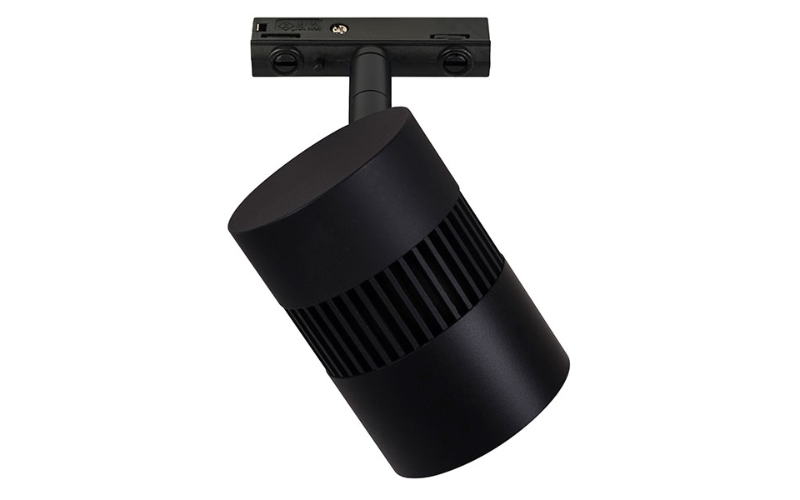

T24. RADIANT LARGE TRACK HEAD 24VDC, WITH INTEGRATED LED, STATIC WHITE & WARM DIM TECHNOLOGY.
Configure
Add to project



RESOURCES
DESCRIPTION
The Radiant Large track head forms the perfect marriage of technology and stealth design. This 16-watt, Low Voltage 24VDC fixture is offered with your choice of four beam spreads, as well as field-changeable optic reflectors (optional). The flat-back cylinder with a radiant heat sink swivels 90° vertically and 360° horizontally. Available in 5 color temperatures, including Warm Dim (30D), that dims from 3000K-1800K exhibiting designergrade color rendering as high as 98 CRI and R9-90. Made from Billet Aluminum, producing a high degree of precision and maximum light output within a small package. Radiant Large is ideal for upscale residential, commercial, and retail environments. 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.34"L: 3.4"H: 2.34"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3000K Dim to Warm3500K
- CRI92 97 98 82
- Watt(Approx)14 W
- Lumens(Approx)838 Lm1389 Lm1161 Lm1199 Lm1422 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageRemote120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLRoHS
- EnvironmentDamp
- Mounting TypeTrack/Busway
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeT24-RADL
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
