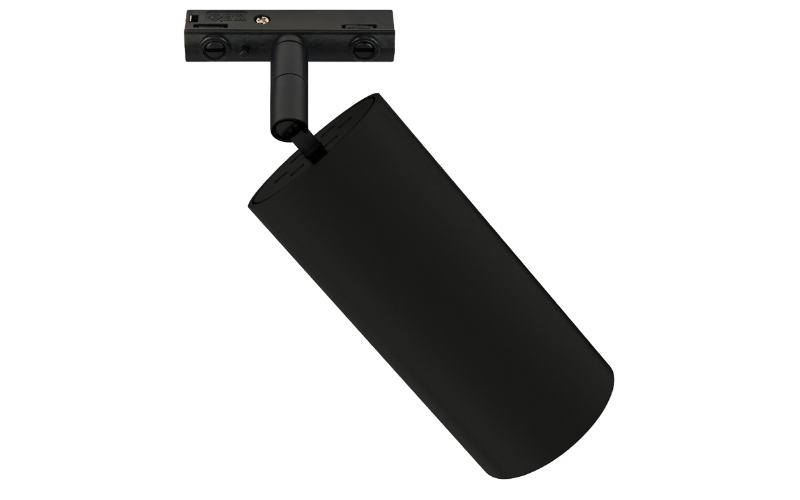

T24. TUBO LARGE 24VDC TRACK HEAD WITH INTEGRATED LED, STATIC WHITE & WARM DIM TECHNOLOGY.
Configure
Add to project



RESOURCES
DESCRIPTION
The Tubo Large Track Head is a 15-watt track luminaire that delivers up to 1032 lumens making the most out of ceiling space while exhibiting a simple yet appealing modern design. Being part of an entirely Low Voltage 24VDC system, it offers unsurpassed efficiency in comparison to traditional track lighting systems. The cylindrical flat-back design houses the heat-sink, LED module, and integrated driver offering 360° horizontal rotation and 90° vertical aiming. Available in five Color Temperatures including Warm Dim (30D), that dims from 3000K-1800K exhibiting designer-grade color rendering as high as 98 CRI and R9-90. Choose from four different beam spreads as well as lens accessories including field-changeable, optic reflectors. With every element designed to be slender and unobtrusive, the Tubo Large provides superb illumination and functionality within a small package.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.34"L: 4.92"H: 2.34"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3000K Dim to Warm3500K
- CRI92 97 98
- Watt(Approx)14.37 W14.36 W14 W14.45 W14.43 W
- Lumens(Approx)1324.5 Lm1180.9 Lm1317 Lm1037 Lm1356.8 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 1%0-10V
- Controls/NetworkWireless Dimming
- Power/VoltageRemote120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLT24*RoHS
- EnvironmentDamp
- Mounting TypeTrack/Busway
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
