PureEdge Lighting
T24. TUBO LARGE WALL WASH 24VDC LED TRACK HEAD.
Configure
Add to project




RESOURCES
DESCRIPTION

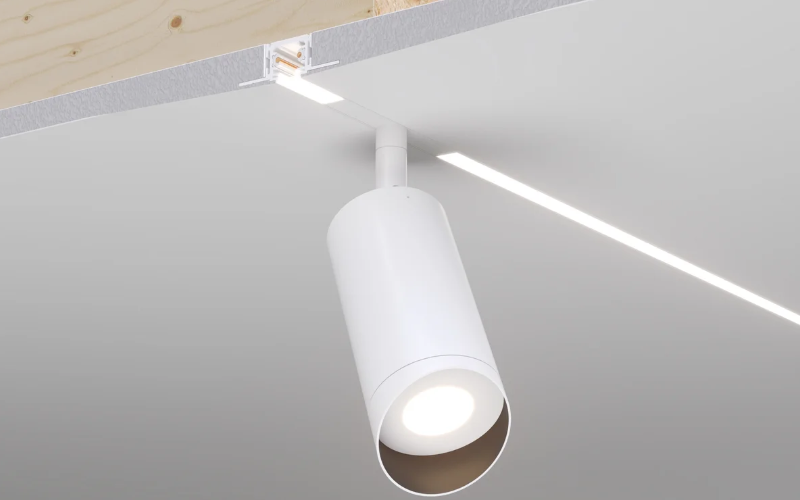

The Tubo Large Wall Wash is a 24VDC, 15 watt track head with integral LED that features a wall wash lens. As with all PureEdge track heads, Tubo Large Wall Wash is available in multiple color temperatures including Warm Dim (30D). The fixture design is of a flat-backed tube heat sink with 360° horizontal and 90° vertical rotation. The low voltage track connector allows you to choose the mounting system from TS24 Surface Mount Track, TR24 Recessed Track, or Pipeline Track Systems. The minimal design of the Tubo Track Head offers maximum illumination and low wattage within a small package. Fixture includes a 5 year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.44"L: 5.61"H: 2.44"
- Light SourceMR/PAR/AR and Other Bulbs
- CCT/Color2400K or less2700K3000K3000K Dim to Warm3500K
- CRI92
- Watt(Approx)15 W
- Lumens(Approx)884 Lm
- OpticsDirectAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/NetworkWireless Dimming
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLRoHS
- EnvironmentDampHealthcare General
- Mounting TypeTrack/Busway
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeT24-TUBL-WW
—
