PureEdge Lighting

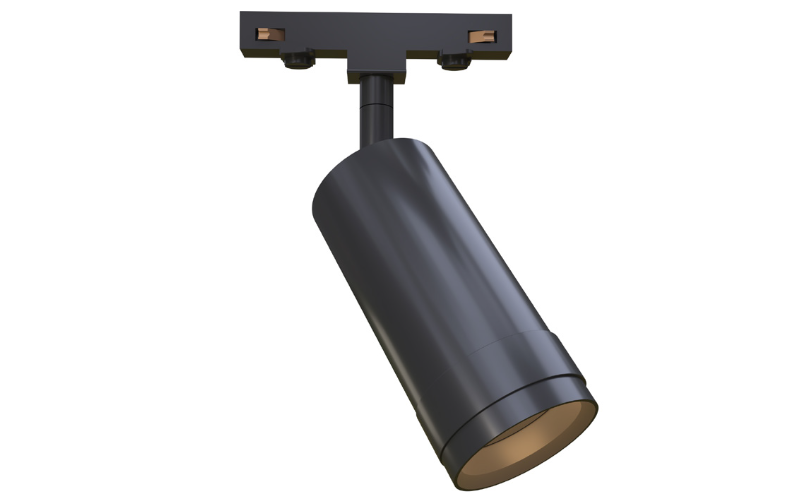

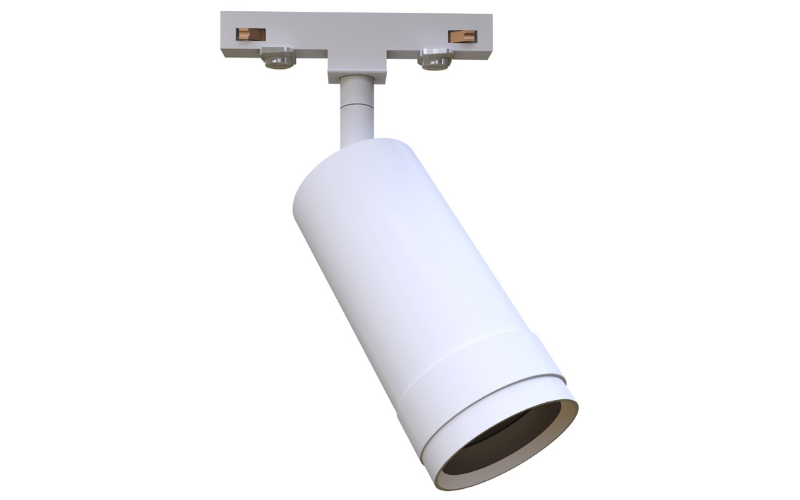

ZOOM. ZOOM TRACK HEAD LED 24VDC, ADJUSTABLE BEAM SPREADS.
 Configure
 Add to project
DESCRIPTION
The T24 Zoom is a 24VDC, 16 watt track head with integral LED that features adjustable beam spreads with up to 1260 lumens. Zoom is offered in two adjustable ranges: Z1 is adjustable from 15° to 55°, Z2 ranges from 20° to 50°. As with all PureEdge track heads, Zoom is available in 5 color temperatures including Warm Dim (30D) with up to 98 CRI. The fixture design is of a flat-backed tube heat sink with 360° horizontal and 90° vertical rotation. The low voltage track connector allows you to choose the mounting system from TS24 Surface Mount Track, TR24 Recessed Track, or Pipeline Track Systems. The minimal design of the Zoom Track Head offers maximum illumination and low wattage within a small package. Fixture includes a 5 year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2.26"
    L: 5"
    H: 2.26"
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K3000K3000K Dim to Warm3500K
  • CRI
    94 98
  • Watt(Approx)
    16 W
  • Lumens(Approx)
    957 Lm1268 Lm
  • Optics
    DirectRemote Adjustable
  • Adjustable
    Adjustable
  • Dimming
    Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    ETLRoHS
  • Environment
    DampHealthcare General
  • Mounting Type
    Track/Busway
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
