TCIR.5. TRUCIRQUE.5A WARM DIM 24VDC, 5/8'' DRYWALL PLASTER-IN LED SYSTEM.
 Configure
 Add to project
DESCRIPTION

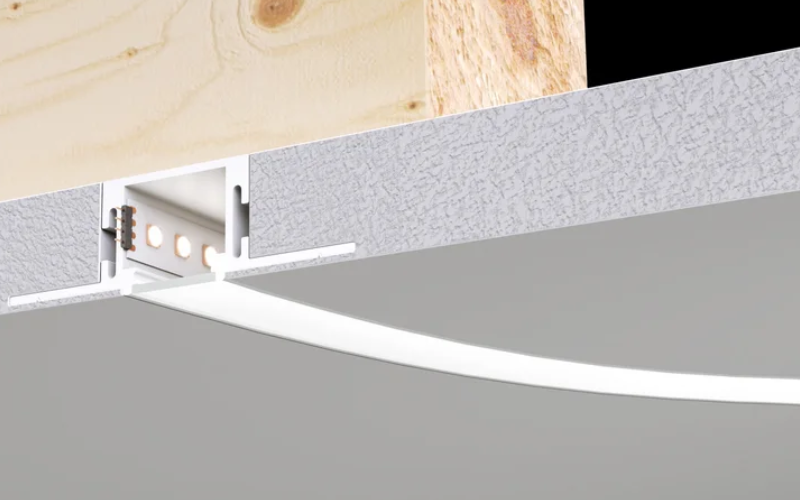

PureEdge Lighting, the pioneer of 5/8" drywall systems, now brings you TruCirque .5A. Our innovative and highly efficient system blends seamlessly into the drywall, becoming part of the architecture and redefining the relationship between lighting and interior design. TruCirque brings the same ease of installation as our other 5/8" drywall families to a pristine circle of illumination. The slim extrusions are offered in various diameters from 2 to 18 feet, supplied with a diffused, flexible lens. TruCirque provides smooth, glare-free illumination using high color rendering LEDs (CRI). Warm Dim technology (27D & 30D) mimics an incandescent atmosphere by decreasing the color temperature as you dim. Our Warm Dim strips can be dimmed all the way down to a soothing amber hue at 1800K, reminiscent of candlelight along the halogen curve. Click here for all Other Color Temperatures. Influenced by simplicity and elegance, TruCirque brings together a modern and dynamic aesthetic to residential and commercial environments. Let the drywall be your canvas. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 Ft13 Ft14 Ft15 Ft16 Ft17 Ft18 Ft
    L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 Ft13 Ft14 Ft15 Ft16 Ft17 Ft18 Ft
  • Light Source
    LED
  • CCT/Color
    2700K Dim to Warm3000K Dim to Warm
  • CRI
    94
  • Watt(Approx)
    4.8 W/Ft
  • Lumens(Approx)
    382 Lm/Ft
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
  • Controls/Network
    Wireless Dimming
  • Power/Voltage
    Remote
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLMade in USA
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedWall RecessedTrimless Drywall
  • Housing
    Fixture
  • Housing Depth
    0.63 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
