PureEdge Lighting
TCIR1. TRUCIRQUE 1 TRUCOLOR RGB & TUNABLE WHITE 24VDC 5/8'' DRYWALL PLASTER-IN LED SYSTEM, 5 CHANNEL CONTROL.
 Configure
 Add to project
DESCRIPTION

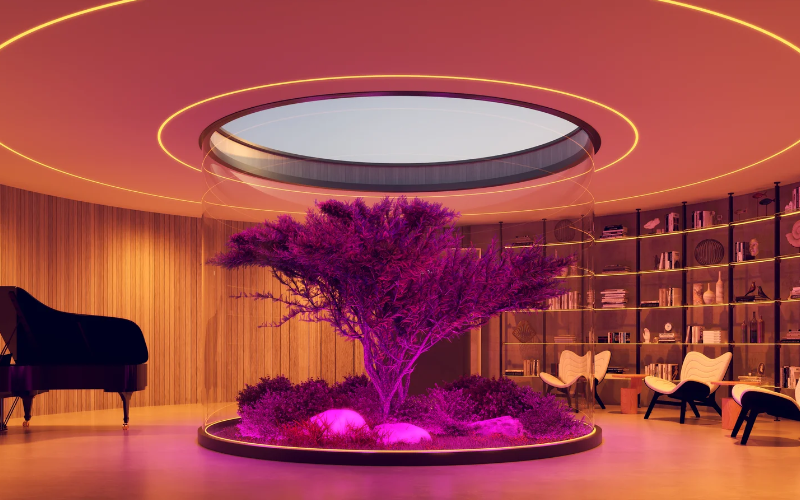

PureEdge lighting, the pioneer of 5/8" drywall systems, now brings you TruCirque. This product brings the same ease of installation to a pristine circle of illumination. Redefining the relationship between lighting and interior design, the innovative and highly efficient system blends seamlessly into the drywall, becoming part of the architecture. Simply specify the diameter of the circle that you'd like to create. The flex channel that is supplied can be field adjusted if need be. Lens and LED strips are field cuttable. RGBTW TruCirque is supplied with a Pure Smart/WiZ Pro CV Bridgebox in the Power Feed. 4 gang junction box is used to house the CV Bridgebox. Intended for use with PSBR-96W-24VDC Remote Power Supply (Sold Separately). WiZ Bridgebox allows for integration into the WiZ Pro wireless control ecosystem and grants 5 Channel, full color control over the TruColorâ„¢ RGBTW Light engine. No Hub Required. WiZ App, WiZ Pro Dashboard and Pure Smart Room Controller all allow for dimming, CCT selection, grouping, scheduling, preset and custom scene creation, voice control with integration of Amazon Alexa, Google Assistant, Siri Shortcuts, IFTTT, and SmartThings. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 Ft13 Ft14 Ft15 Ft16 Ft17 Ft18 Ft
    L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 Ft13 Ft14 Ft15 Ft16 Ft17 Ft18 Ft
  • Light Source
    LED
  • CCT/Color
    Tunable White & Colors
  • CRI
  • Watt(Approx)
    5 W/Ft7 W/Ft
  • Lumens(Approx)
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
  • Controls/Network
    Wireless Dimming
  • Power/Voltage
    Remote
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLMade in USARoHS
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedWall RecessedTrimless Drywall
  • Housing
    Fixture
  • Housing Depth
    0.63 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
