TL1.6A. TRULINE 1.6A 24VDC WARM DIM 24VDC, 5/8'' DRYWALL PLASTER-IN LED SYSTEM.
Configure
Add to project




RESOURCES
DESCRIPTION

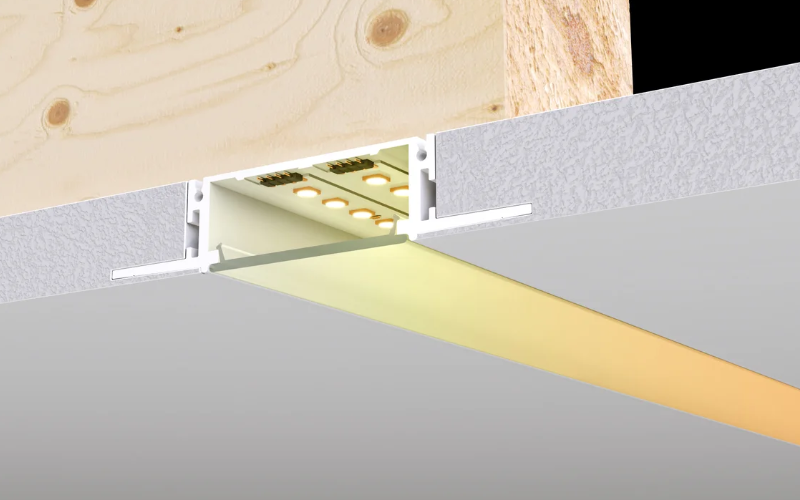

PureEdge pioneered the TruLine 1.6A Plaster-in, fully dimmable 24VDC LED system that Recesses within 5/8" drywall, without any joist modification. Redefining the relationship between Lighting and Interior Design, this Innovative and highly Efficient system blends seamlessly into the drywall, becoming part of the Architecture. The slim extrusions, LED strips, and lenses are field-cuttable and ordered in 1-foot increments (up to 20' before re-feeding). Multiple runs of channel mount flawlessly together providing smooth and Glare-free general illumination using Designer-grade Color Rendering LEDs (95+ CRI). With the ability to run in vertical, horizontal, and diagonal directions, the compositions are truly endless. TruLine1.6A is offered in a broad range of wattages and Warm Dim technology (27D & 30D) mimics an incandescent atmosphere by decreasing the color temperature as you dim. Our Warm Dim strips can be dimmed all the way down to a soothing amber hue at 1800K, reminiscent of candlelight along the halogen curve. Click here for all Other Color Temperatures. Coordinate installation with electrical and drywall contractors.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.63"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K Dim to Warm3000K Dim to Warm
- CRI
- Watt(Approx)10 W/Ft
- Lumens(Approx)1012 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USAT24*RoHS
- EnvironmentDamp
- Mounting TypeCeiling RecessedWall Recessed
- HousingFixture
- Housing Depth0.63 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
