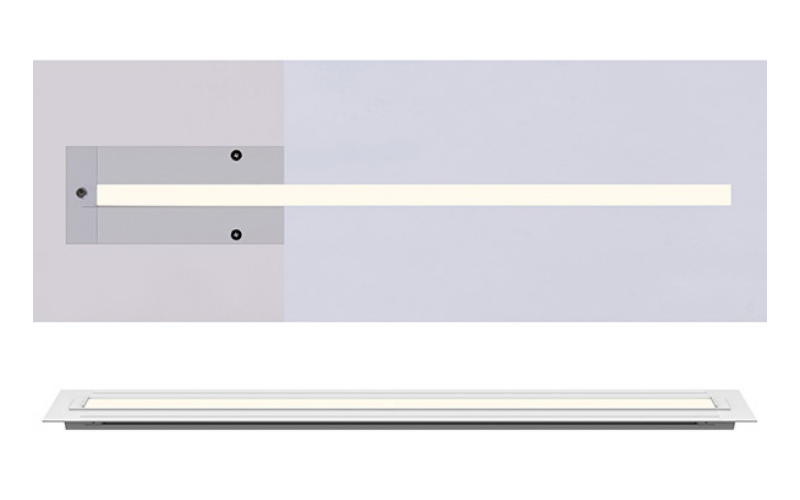

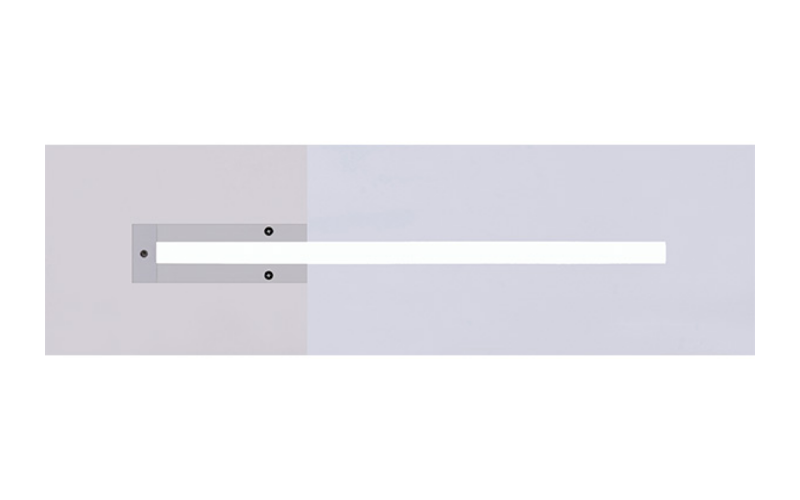

TL1A. TRULINE 1A DO-IT-YOURSELF PLASTER-IN LED SYSTEM.
Configure
Add to project




RESOURCES
DESCRIPTION
PureEdge pioneered the TruLine 1A DIY (Do-It-Yourself) Plaster-in, 24VDC LED system that recesses within 5/8" drywall, without any framing modification required. Redefining the relationship between lighting and interior design, this innovative and highly efficient system blends seamlessly into the drywall, becoming part of the architecture. TruLine 1A DIY system simplifies complex configurations by using pre-formed components, streamlining the installation process. The slim extrusions, LED strips, and lenses are fieldcuttable and ordered in various increments. Multiple runs of channel mount flawlessly together providing smooth and glare-free general illumination using designer-grade color rendering LEDs (95+ CRI). With the ability to run in vertical, horizontal, and diagonal directions or wrap both inside and outside corners, the compositions are truly endless. Offered in a broad range of wattages and color temperatures from 2400K through 4000K in Static White, Warm Dim (27D or 30D), Pro-Dim (27KPD or 30KPD), Tunable White (2K6K or 27K6), Dynamic RGB, RGB+White in 2000K (special order in 27K, 30K and 40K), and TruColorâ„¢ RGBTW Color Changing RGB with Tunable White 1500K-6500K. Influenced by simplicity and elegance, the Truline 1A Plaster-in system brings together a modern and dynamic appearance to residential and commercial projects alike, offering unlimited creativity, and empowering you to design one-of-a-kind, personalized spaces every time. Let the drywall be your canvas. For custom designs and quotes, send drawings to design@PureEdgeLighting.com.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: Run length (inch)H: 2.65"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000KTunable WhiteRGBRGBWYellow/AmberRedGreenBlue
- CRI85 90 95 92 80
- Watt(Approx)2.5 W/Ft2.6 W/Ft4.4 W/Ft4.8 W/Ft5 W/Ft4.6 W/Ft6.3 W/Ft7.3 W/Ft7.5 W/Ft10 W/Ft12 W/Ft
- Lumens(Approx)173 Lm/Ft242 Lm/Ft362 Lm/Ft451 Lm/Ft500 Lm/Ft669 Lm/Ft631 Lm/Ft548 Lm/Ft705 Lm/Ft1033 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%ELV/Reverse/Trailing0-10VDMX
- Controls/NetworkWireless Dimming
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLT24*
- EnvironmentDamp
- Mounting TypeWall RecessedDrywall
- HousingFixture
- Housing Depth0.63 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
