PureEdge Lighting
TL1A. TRULINE 1A MONOCHROMATIC COLOR 24VDC, 5/8'' DRYWALL PLASTER-IN LED SYSTEM.
 Configure
 Add to project
DESCRIPTION

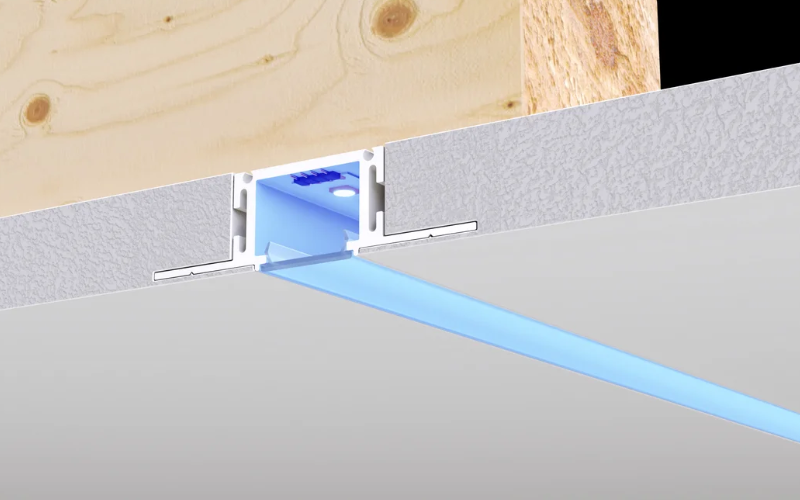

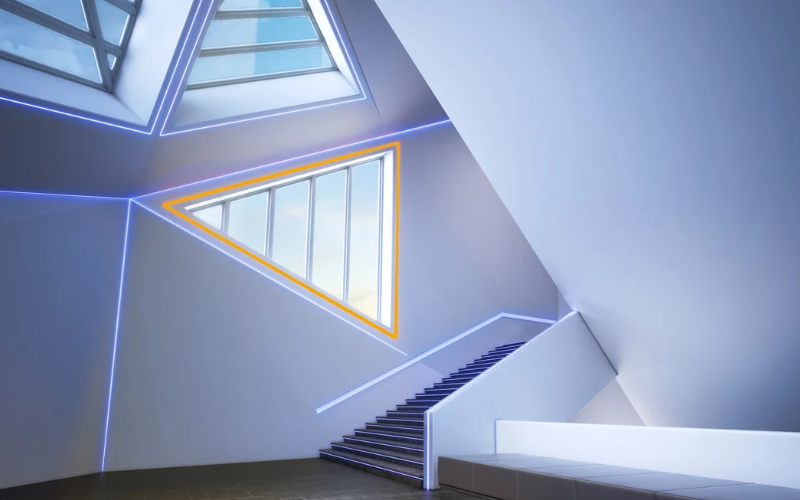

PureEdge pioneered the TruLine 1A Plaster-in 24VDC LED system that Recesses within 5/8" drywall, without any joist modification. Redefining the relationship between Lighting and Interior Design, this Innovative and highly Efficient system blends seamlessly into the drywall, becoming part of the Architecture. The slim extrusions, LED strips, and lenses are field-cuttable and ordered in 1' increments (up to 36' before re-feeding). Multiple runs of channel mount flawlessly together providing smooth and Glare-free general illumination. With the ability to run in vertical, horizontal, and diagonal directions, the compositions are truly endless. Monochromatic LEDs provide dynamic color effects, offered in Red, Amber, Blue, and Green. Click here for all Other Color Temperatures. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 0.78"
    L: Run length (Ft)
  • Light Source
    LED
  • CCT/Color
    Yellow/AmberRedGreenBlue
  • CRI
  • Watt(Approx)
    2.6 W/Ft5 W/Ft
  • Lumens(Approx)
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
  • Controls/Network
    Wireless Dimming
  • Power/Voltage
    Remote
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLMade in USAT24*RoHS
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedWall Recessed
  • Housing
    Fixture
  • Housing Depth
    0.63 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
