PureEdge Lighting
TL1A. TRULINE 1A RGB/RGBW 24VDC, PLASTER-IN LED SYSTEM.
Configure
Add to project




RESOURCES
DESCRIPTION

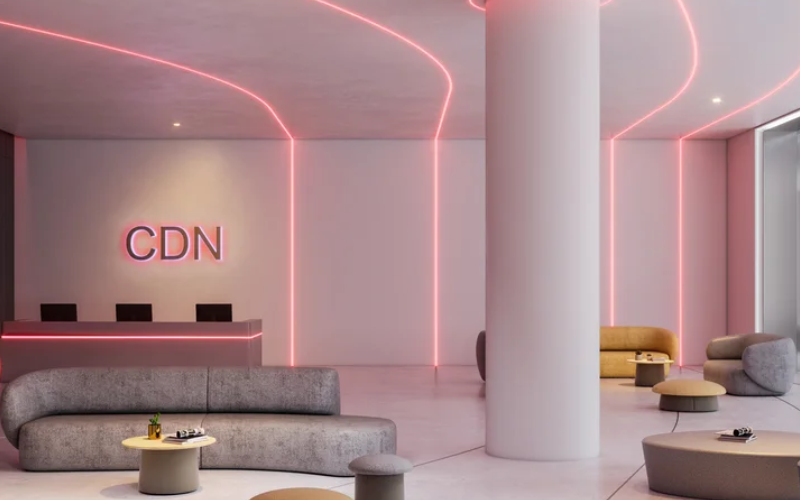

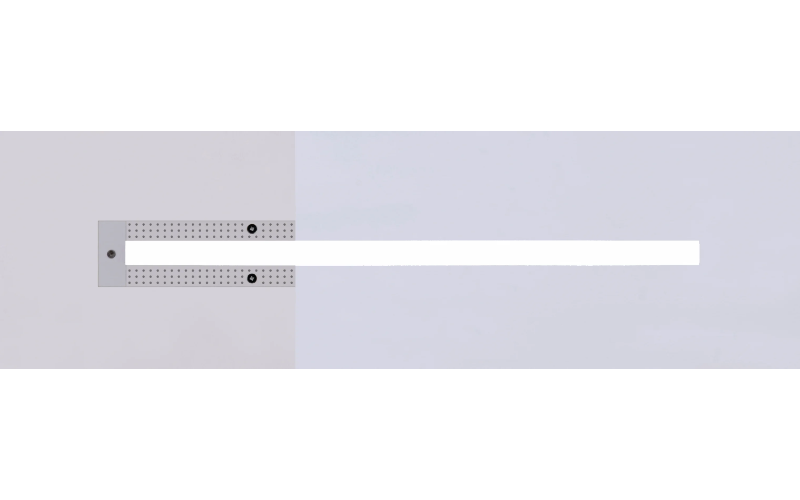

PureEdge pioneered the TruLine 1A Plaster-in 24VDC LED system that Recesses within 5/8" drywall, without any joist modification. Redefining the relationship between Lighting and Interior Design, this Innovative and highly Efficient system blends seamlessly into the drywall, becoming part of the Architecture. The slim extrusions, LED strips, and lenses are field-cuttable and ordered in 1' increments (up to 40' before re-feeding). Multiple runs of channel mount flawlessly together providing smooth and Glare-free general illumination with the ability to run in vertical, horizontal, and diagonal directions, the compositions are truly endless. The TruLine 1A Plaster-in LED System is With Dynamic Color Effects of RGB and RGBW Click here for all Other Color Temperatures. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.65"L: Run length (Ft)
- Light SourceLED
- CCT/ColorRGBRGBW
- CRI
- Watt(Approx)2.6 W/Ft5 W/Ft6.3 W/Ft
- Lumens(Approx)
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%DALIDMX
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USARoHS
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywall
- HousingFixture
- Housing Depth0.63 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeTL1A-RGB-RGBW
—
