PureEdge Lighting
TL.5A. TruLine .5A DIY Do-It-Yourself 24VDC 5/8'' Drywall Plaster-In LED System.
 Configure
 Add to project
DESCRIPTION

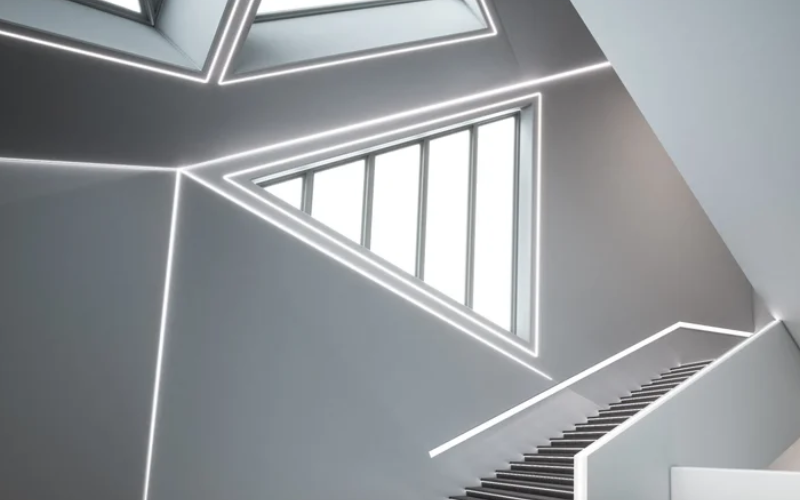

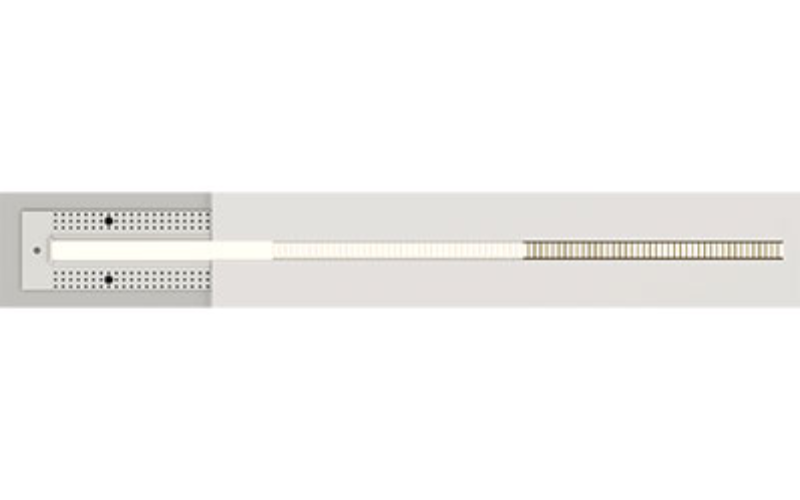

PureEdge pioneered the TruLine .5A DIY (Do-It-Yourself) plaster-in, 24VDC LED system that recesses within 5/8" drywall, without any joist modification. Redefining the relationship between lighting and interior design, this innovative and highly efficient system blends seamlessly into the drywall, becoming part of the architecture. TruLine .5A DIY system simplifies complex configurations by using pre-formed components, streamlining the installation process. The slim extrusions, LED strips, and lenses are field-cuttable and ordered in various increments. Multiple runs of channel mount flawlessly together providing smooth and glare-free general illumination using designergrade Color Rendering LEDs (95+ CRI). With the ability to run in vertical, horizontal, and diagonal directions or wrap both inside and outside corners, the compositions are truly endless. Offered in a broad range of wattages and color temperatures from 2400K through 4000K, Warm Dim (27D or 30D), Tunable White (2K6K or 27K6), Dynamic RGB, RGB+White in 2000K (special order in 27K, 30K and 40K), and TruColorâ„¢ RGBTW Color Changing RGB with Tunable White 2000K-6500K. Influenced by simplicity and elegance, the Truline .5A plaster-in system brings together a modern and dynamic appearance to residential and commercial environments, offering unlimited creativity, and empowering you to design one-of-a-kind, personalized spaces. Let the drywall be your canvas. Coordinate installation with electrical and drywall contractors. For custom designs and quotes, send drawings to design@PureEdgeLighting.com.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 0.4"
    L: Run length (inch)
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000KTunable WhiteRGBRGBWYellow/AmberRedGreenBlue
  • CRI
    92 94
  • Watt(Approx)
    2.5 W/Ft2.6 W/Ft4.4 W/Ft4.8 W/Ft5 W/Ft4.6 W/Ft6.3 W/Ft7.3 W/Ft7.5 W/Ft10 W/Ft12 W/Ft
  • Lumens(Approx)
    173 Lm/Ft242 Lm/Ft362 Lm/Ft451 Lm/Ft452 Lm/Ft669 Lm/Ft631 Lm/Ft548 Lm/Ft610 Lm/Ft1033 Lm/Ft
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
  • Controls/Network
    Wireless Dimming
  • Power/Voltage
    Remote
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLMade in USAT24*RoHS
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedWall RecessedDrywall
  • Housing
    Fixture
  • Housing Depth
    0.5 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
