PureEdge Lighting
TL.5A. TRULINE TRUQUAD .5A 24VDC PLASTER-IN LED SYSTEM.
 Configure
 Add to project
DESCRIPTION

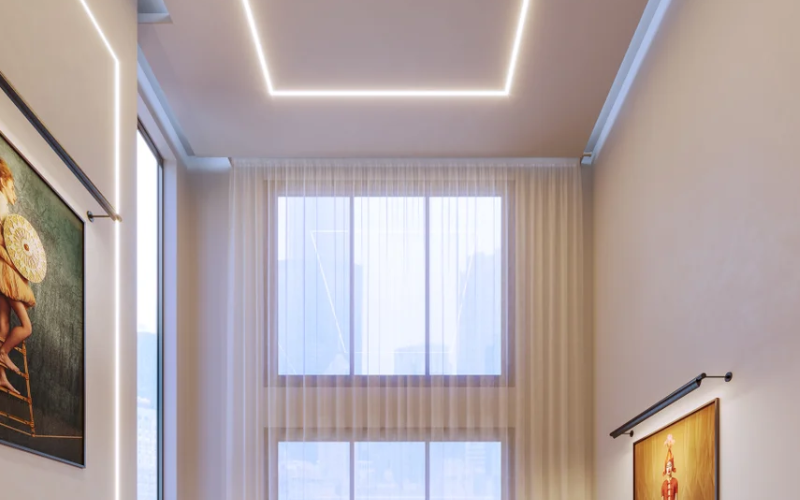

TruQuad .5A Complete Fixture, is a versatile 24VDC linear plaster-in LED system that Recesses within 5/8" drywall, without any joist modification producing clean, glare-free illumination without any visible diodes. Redefining the relationship between Lighting and Interior Design, this Innovative and highly Efficient system blends seamlessly into the drywall, becoming part of the Architecture. Order in 1-inch increments from 6"-480". Truline TruQuad can be mounted on walls and ceilings and is suitable for damp locations. The slim extrusions, LED strips, and lenses may be secured to studs that are spaced 13"-24" apart, or between studs with mounting clips provided. Use with PureEdge Soft Strip, with Designer-grade High CRI Color Rendering LEDs offered in a broad range of Color Temperatures, Static White 2000K-5700K, RGB, RGB+W, Warm Dim (27D and 30D) and, Tunable White (2K6K and 27K6) as well as three wattage options of 2WDC, 5WDC, 6WDC and 7WDC. Coordinate installation with electrician and drywall contractors. Includes a 5-year pro-rated warranty.


MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    L: Run length (inch)
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000KTunable WhiteRGBRGBW
  • CRI
    90 95 92 85 94
  • Watt(Approx)
    2.5 W/Ft4.4 W/Ft4.8 W/Ft6.3 W/Ft7.5 W/Ft7.4 W/Ft
  • Lumens(Approx)
    344 Lm/Ft708 Lm/Ft
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-Lume 2-wire (LTEA)Lutron Hi-Lume 3-wire (L3D)Lutron Hi-lume Premier 3-wire (L3D03W)DMX
  • Controls/Network
    Wireless Dimming
  • Power/Voltage
    RemoteUNV 120-277V120V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLMade in USAT24*
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedWall RecessedDrywall
  • Housing
    Fixture
  • Housing Depth
    3.25 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
