PureEdge Lighting

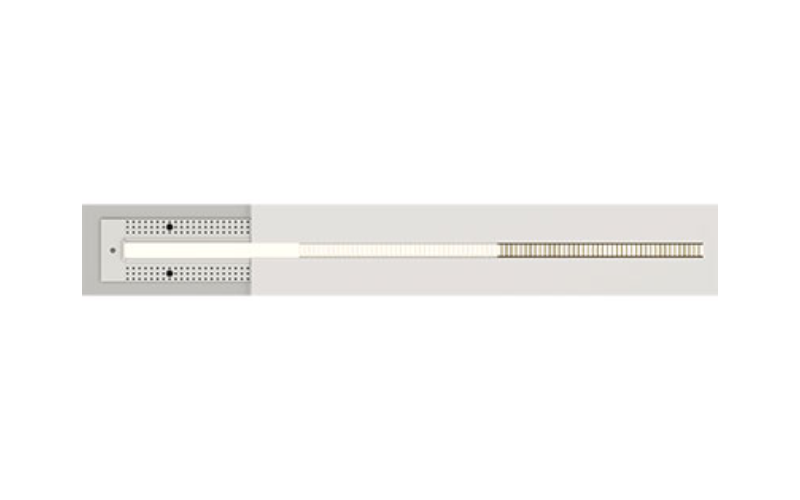

TL.5A. TRULINE .5A TUNABLE WHITE 24VDC, 5/8'' DRYWALL PLASTER-IN LED SYSTEM.
Configure
Add to project




RESOURCES
DESCRIPTION
PureEdge pioneered the TruLine .5A Plaster-in 24VDC LED system that Recesses within 5/8" drywall, without any joist modification. Redefining the relationship between Lighting and Interior Design, this Innovative and highly Efficient system blends seamlessly into the drywall, becoming part of the Architecture. The slim extrusions, LED strips, and lenses are field-cuttable and ordered in 1' increments (up to 40' before re-feeding). Multiple runs of channel mount flawlessly together providing smooth and Glare-free general illumination using Designer-grade Color Rendering LEDs (95+ CRI). With the ability to run in vertical, horizontal, and diagonal directions, the compositions are truly endless. Tunable White 2000K-6500K (2K6K) or 2700K-6500K (27K6) grants independent control and adjustment of color temperature and intensity from 2000K (Sunset) through 6500K (Day Light White). Tunable white lighting visually, biologically and emotionally contributes to human interaction with the physical world. Human centric lighting (HCL) builds on this technology bringing the dynamics of natural daylight indoors, and delivering a positive effect on human health, wellbeing and performance. Click here for all Other Color Temperatures. Coordinate installation with electrical and drywall contractors. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.53"L: Run length (Ft)
- Light SourceLED
- CCT/ColorTunable White
- CRI
- Watt(Approx)2.5 W/Ft4.4 W/Ft
- Lumens(Approx)131 Lm/Ft314 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USAT24*RoHS
- EnvironmentDamp
- Mounting TypeCeiling RecessedWall Recessed
- HousingFixture
- Housing Depth0.63 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeTL5A-TW
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
