PureEdge Lighting
TR. TRAPEZE 360 MIYO 24VDC, STATIC WHITE, WARM DIM & TRUCOLOR TUNABLE WHITE.
 Configure
 Add to project
DESCRIPTION

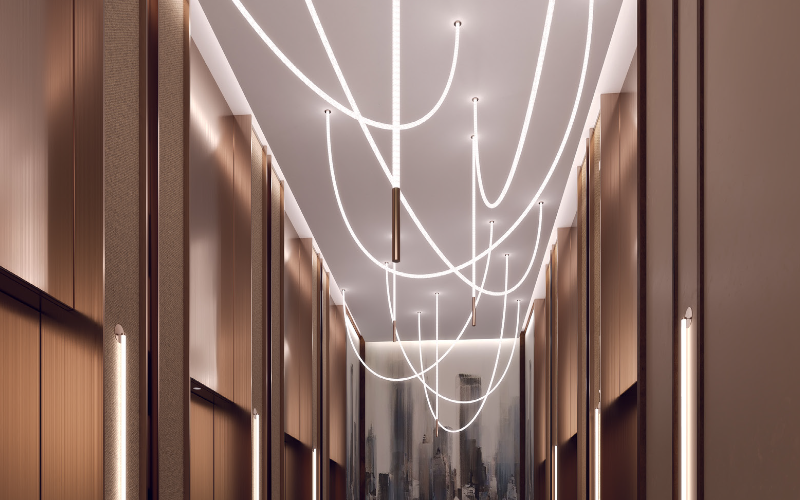

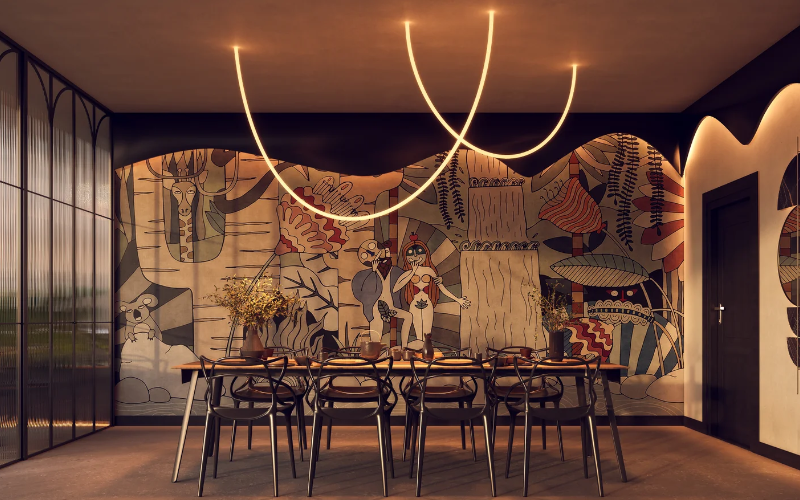

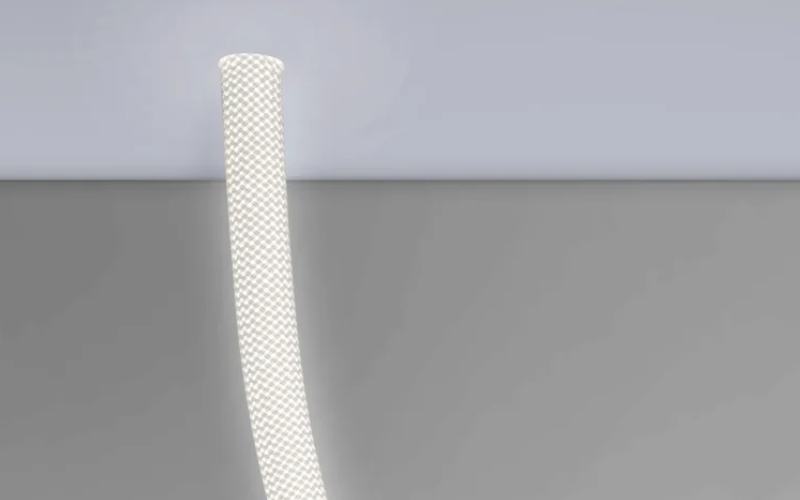

Trapeze 360 MIYO (Make-It-Your-Own) Suspension is a flexible, architectural lighting system that blends form and function to create continuous, 360-degree illumination without pixelation. Its sculptural, minimal design provides a striking visual element while delivering exceptional color rendering for a clean, uninterrupted glow.

Designed to offer both a sophisticated aesthetic and an inviting ambiance, Trapeze 360 enhances interiors with its fluid, seamless flow. Choose from Static White, Warm Dim (30D), Tunable White (2K6K & 27K6), or TruColor RGBTW which is our premier light engine with a wide spectrum from 1500K-6500K and exceptional color rendering (94+ CRI). TruColor RGBTW takes Tunable White to the next level. With the addition of the red, green, and blue channels to the tunable white, we're able to achieve a level of quality, performance, and accuracy that was previously unattainable. TruColor RGBTW can be controlled with either DMX or WiZ Pro wireless controls. With flexible configuration options and precision engineering, Trapeze 360 serves as both a functional lighting solution and a design statement, making it the perfect solution for a wide range of applications.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 0.91.2"0.9"
    L: Run length (inch)
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K3000K3000K Dim to Warm3500K4000KTunable WhiteTunable White & Colors
  • CRI
    90
  • Watt(Approx)
    3 W/Ft5 W/Ft7 W/Ft
  • Lumens(Approx)
    430 Lm/Ft599 Lm/Ft
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
  • Controls/Network
  • Power/Voltage
    Remote
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLT24*
  • Environment
    Damp
  • Mounting Type
    Ceiling Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
