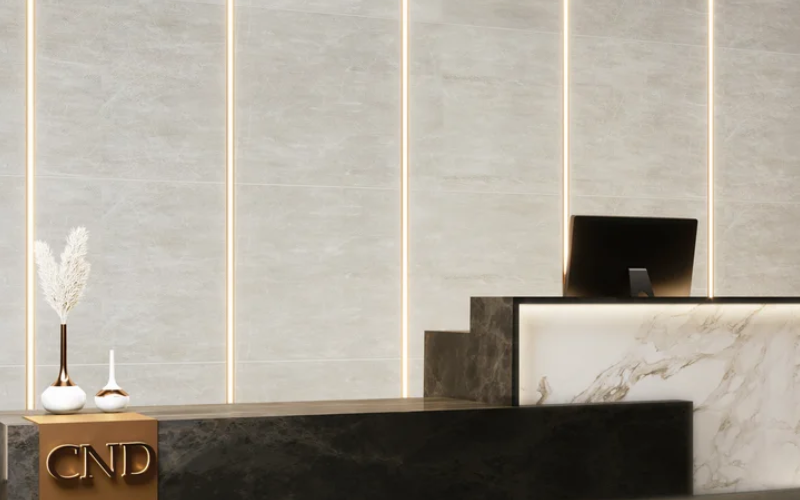

TTL1.6A. TRULINE TRIM 1.6A STATIC WHITE 24VDC LED SYSTEM, 1/2'' TRIM.
Configure
Add to project
RESOURCES
DESCRIPTION
TruLine Trim 1.6A is a recessed 24VDC LED system that features a paintable 1/2" trim. The slim channel extrusions recess within any flat surface, including 5/8" drywall, tile, and millwork, eliminating the need for stud or joist modification. The channel, LED strips, and lenses are field-cuttable and ordered in 1' increments (up to 40' before re-feeding), providing flexibility and unparalleled ease of installation. TruLine Trim 1.6A is offered in a broad range of wattages and color temperatures up to 95+ CRI, ranging from 2400K through 4000K. Click here for all Other Color Temperatures. 24VDC Remote Power Supplies are required and sold separately. Coordinate installation with electrical and drywall contractors. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.82"L: Run length (Ft)
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI95
- Watt(Approx)5 W/Ft10 W/Ft14 W/Ft
- Lumens(Approx)581 Lm/Ft1073 Lm/Ft1572 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USAT24*RoHS
- EnvironmentDamp
- Mounting TypeCeiling RecessedWall RecessedDrywall
- HousingFixture
- Housing Depth0.63 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
