TTL1.6A. TRULINE TRIM 1.6A WARM DIM 24VDC LED SYSTEM, 1/2'' TRIM.
Configure
Add to project




RESOURCES
DESCRIPTION

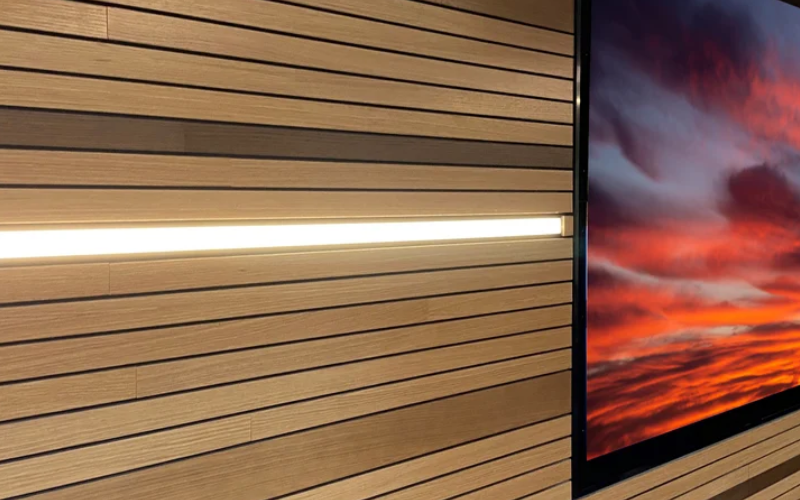

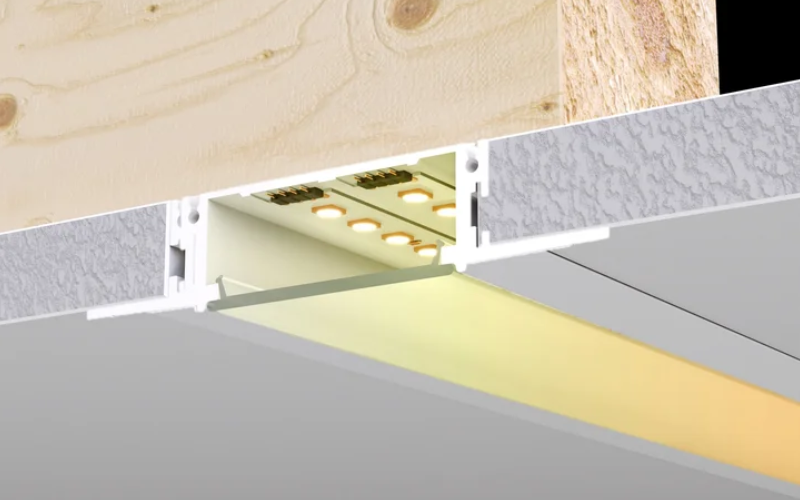

TruLine Trim 1.6A is a recessed 24VDC LED system that features a paintable 1/2" trim. The slim channel extrusions recess within any flat surface, including 5/8" drywall, tile, and millwork, eliminating the need for stud or joist modification. The channel, LED strips, and lenses are field-cuttable and ordered in 1' increments (up to 20' before re-feeding), providing flexibility and unparalleled ease of installation. Truline Trim 1.6A with Warm Dim technology (27D & 30D) mimics an incandescent atmosphere by decreasing the color temperature as you dim. Our Warm Dim strips can be dimmed all the way down to a soothing amber hue at 1800K, reminiscent of candlelight along the halogen curve; click here for all Other Color Temperatures. Coordinate installation with electrical and drywall contractors.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.82"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K Dim to Warm3000K Dim to Warm
- CRI
- Watt(Approx)10 W/Ft
- Lumens(Approx)1012 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeCeiling RecessedWall RecessedDrywall
- HousingFixture
- Housing Depth0.63 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
