PureEdge Lighting

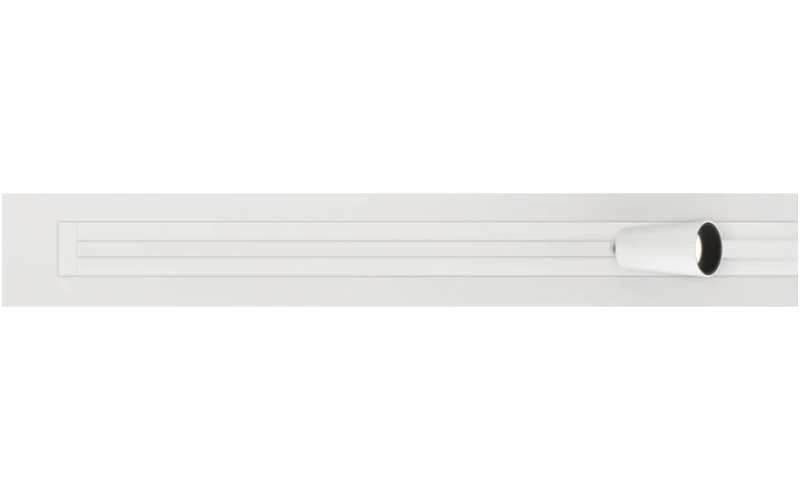

TTRJ. TRUTRACK TRIM J TYPE 120V RECESSED ONE-CIRCUIT TRACK SYSTEM, 1/2'' TRIM.
Configure
Add to project
RESOURCES
DESCRIPTION

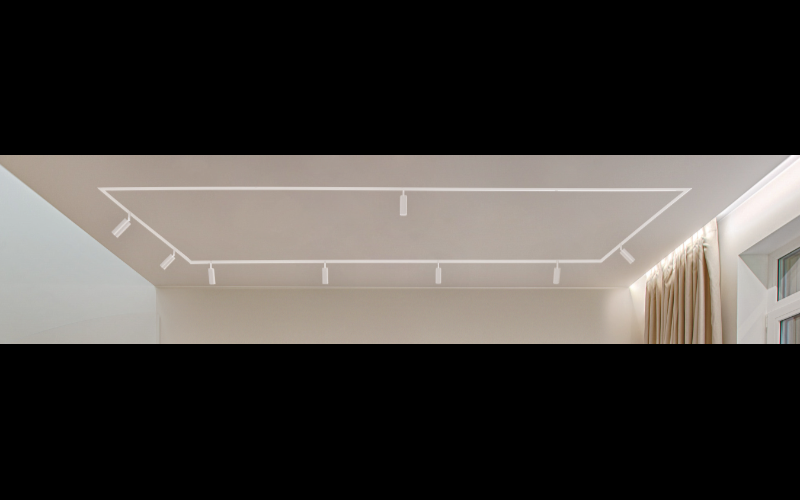

Trim Track is a line voltage, single-circuit aluminum track with a depth of 1/2 inch, specifically designed for recessing into plasterboard or wood ceilings. Available in 4-foot and 8-foot lengths with a white finish. These tracks are intended for straight runs only and can be cut to the desired length by the installer. They are rated for 20 amps at 120 volts up to 1800 watts and are ETL listed, compatible with J type track fixtures. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: Run length (Ft)
- Light SourceLED
- CCT/Color2400K or less2700K3000K3000K Dim to Warm3500KTunable White
- CRI93 91
- Watt(Approx)13 W26 W
- Lumens(Approx)1322 Lm1213 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%ELV/Reverse/Trailing
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLT24*
- Environment
- Mounting TypeTrack/BuswayCeiling RecessedMagnetic SystemDrywall
- HousingFixture
- Housing Depth0.41 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeTTRJ
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
