PureEdge Lighting

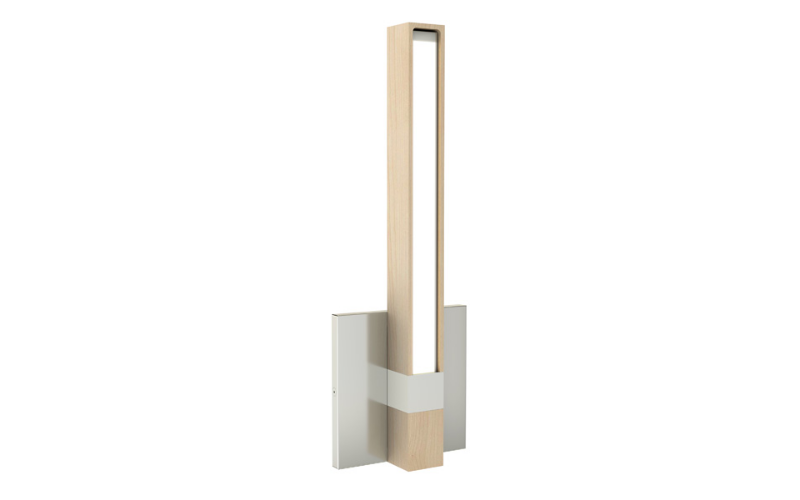

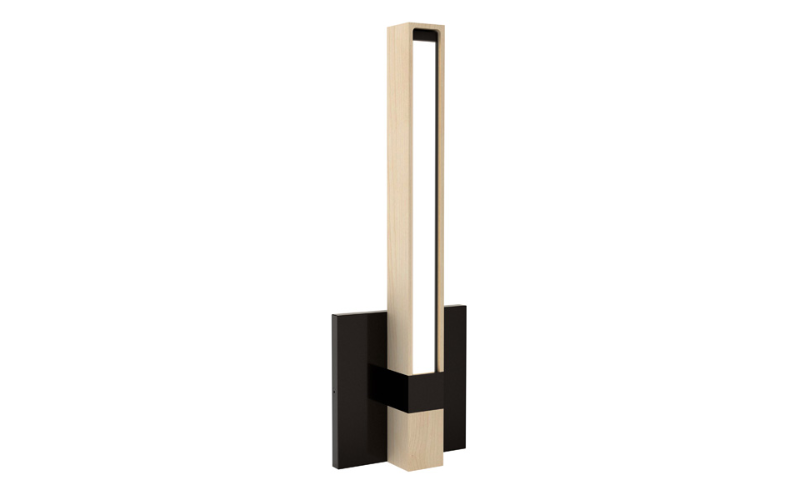

TXW1. TIE STIX WALL 1-LIGHT VERTICAL 24VDC WALL LIGHT VERTICAL WITH WARM DIM TECHNOLOGY.
Configure
Add to project




RESOURCES
DESCRIPTION
Tie Stix Wall 1-Light Vertical Vanity contains Designer Grade 95+ CRI LEDs for excellent color rendering in a range of color temperatures including 2700K (27D) or 3000K (30D) that dim down to 2000K. Tie Stix Wall 1-Light is available in standard sizes from 12 inch to 46 inches (custom order length available). Fixture options include, TXW1 120V-24VDC electronic low voltage (ELV) power supply (included) that fits inside three different junction box options. TXW1R Remote Universal Power Supplies (Sold Separately), Class 2 wiring with dimming choices of Triac, ELV or 0-10V. Fixtures include a 5 year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.9"L: 0.9"H: 13.2"15.6"12.6"18"18.6"22.8"21.6"30.6"34.8"33.6"46.8"45.6"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K
- CRI90 95 85 84
- Watt(Approx)5 W/Ft
- Lumens(Approx)325 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLMade in USAADA
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
