PureEdge Lighting

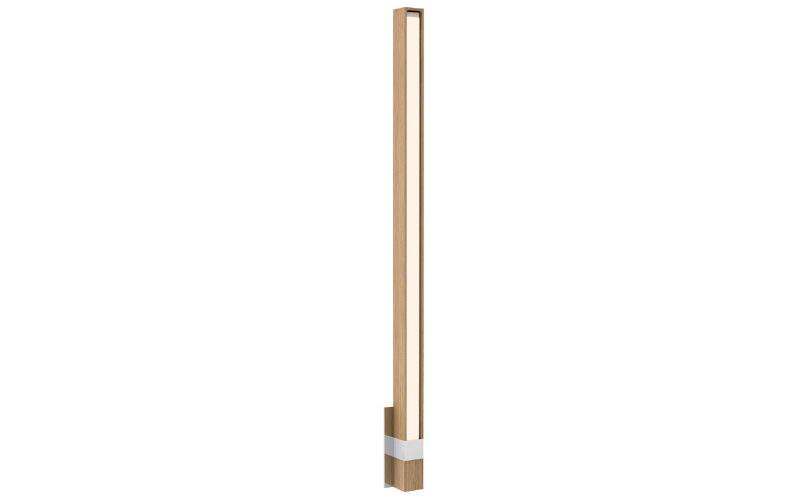

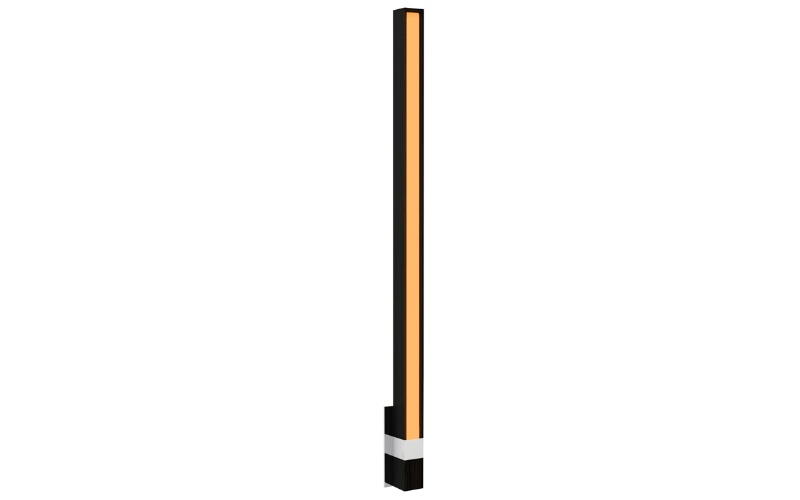

TXW1R. TIE STIX WALL 1-LIGHT VERTICAL DYNAMIC/TUNABLE WHITE WITH REMOTE 24VDC POWER SUPPLY, HUMAN CENTRIC LIGHTING.
Configure
Add to project




RESOURCES
DESCRIPTION
Tie Stix Wall 1-Light Vertical uses the latest in LED Technology. Tunable White 2000K-6500K (2K6K) or 2700K-6500K (27K6) grants independent control and adjustment of color temperature and intensity from 2000K (Sunset) through 6500K (Day Light White). 2K6K is ideal for residential spaces including, dining rooms, bedrooms, living spaces, and bathrooms by allowing the user to achieve a warm glow during the golden hours of the early mornings and evenings. For commercial environments, 27K6 promotes focus and alertness which is ideal for offices, healthcare and education, while still achieving warmer color temperatures best for hospitality and retail environments. Human-Centric lighting, or tunable white, promotes performance, mood, and overall well-being by fine-tuning the emotional effects that light has on the circadian cycle. Powered by 24VDC remote power supplies that can be located up to 40' away. Ordered in various increments, from 12"-46". Remote Power Supplies are Required and Sold Separately. Designer grade 95+ CRI. Fixtures include a 5 year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.24"L: 12"15"18"20"22"24"27"29"32"34"36"39"41"44"46"H: 1.24"
- Light SourceLED
- CCT/ColorTunable White
- CRI95
- Watt(Approx)5 W/Ft
- Lumens(Approx)270 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10VDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLMade in USAADAT24*RoHS
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
