PureEdge Lighting

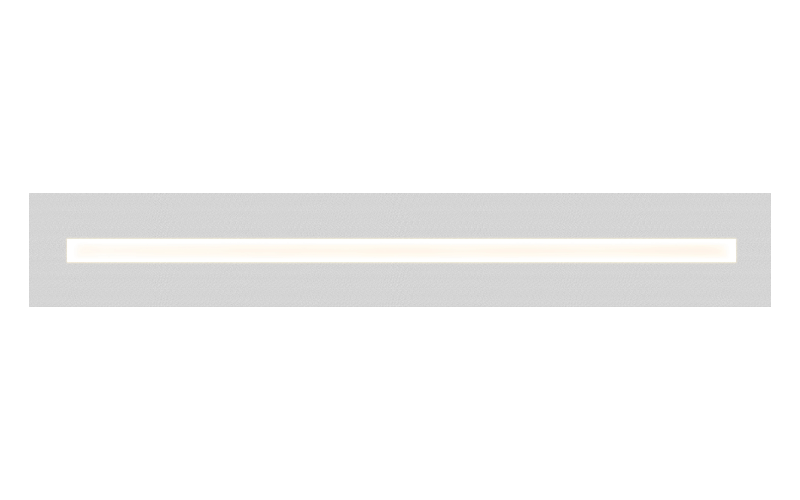

VECE. VEIL, TRUCOLOR RGB & TUNABLE WHITE 24VDC, 5/8'' DRYWALL PLASTER-IN LED SYSTEM
 Configure
 Add to project
DESCRIPTION
Veil Ceiling/Wall with TruColor™ RGBTW technology is another original and innovative design that comes from the family of Plaster-in 24VDC systems pioneered by PureEdge that recesses within 5/8" drywall, with no framing modification required. The slim extrusions elegantly emit smooth, ambient illumination through the 3" opening, while the paintable backer plate creates a seamless aesthetic blending into the drywall. Veil Ceiling/Wall is field-cuttable, and sold in 1' increments up to 8'. The Veil luminaire with TruColor RGBTW light engine requires that it be powered with a remote Pure Smart PSBB power supply(sold separately) which allows for wireless control with the WiZ Pro software suite and Pure Smart Wi-Fi Room Controller(CWW-TW-SCENE-WH or CWR-TW-SCENE-WH sold separately). This plaster-in LED system brings together a Modern and Dynamic appearance to Residential and Commercial environments, offering unlimited creativity and empowering you to design One-of-a-kind spaces every time. Requires Remote Power Supply (PSBB-96W-WZTC5W5-RL sold separately). Coordinate installation with electrical and drywall contractors. Includes a 5-year pro-rated warranty. For custom quotes and layout assistance, send your drawings and ideas to our design team: design@PureEdgeLighting.com
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3"
    L: 6 Ft8 Ft
  • Light Source
    LED
  • CCT/Color
    Tunable White & Colors
  • CRI
  • Watt(Approx)
    10 W/Ft14 W/Ft
  • Lumens(Approx)
    798 Lm/Ft1076 Lm/Ft
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
  • Controls/Network
  • Power/Voltage
    Remote
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLMade in USARoHS
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedWall RecessedDrywall
  • Housing
    New Construction
  • Housing Depth
    5/8 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
