PureEdge Lighting
VG. VERGE WALL/FLOOR 24VDC - PLASTER-IN LED SYSTEM.
Configure
Add to project



RESOURCES
DESCRIPTION

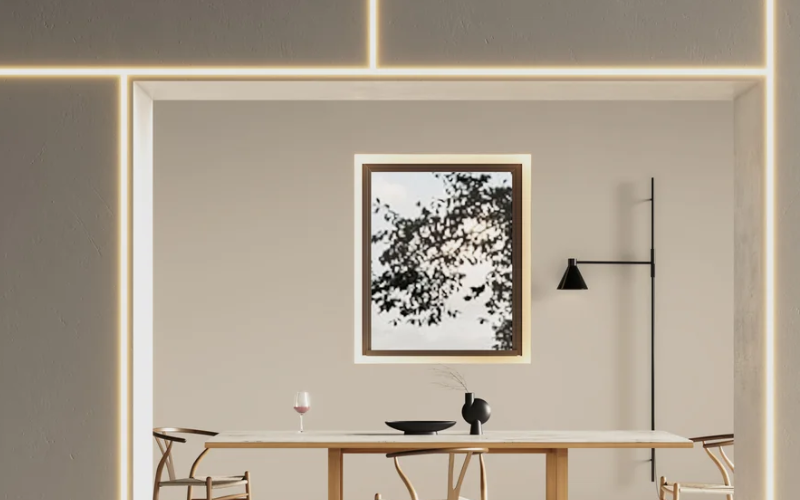

Verge Wall Static White is another innovative design that comes from the family of plaster-in 24VDC systems pioneered by PureEdge that recesses within 5/8" drywall without joist modification. Verge Wall creates and highlights the transition space where two drywall surfaces join together while emitting ambient illumination, redefining the relationship between lighting and architecture. Order in 1' field-cuttable increments up to 40', the slim plaster-in aluminum extrusion has a 4" paintable backer plate. Offered in multiple wattage and color temperatures ranging from 2400K through 4000K. Click here for all Other Color Temperatures. Verge brings together a Modern and Dynamic appearance to Residential and Commercial environments, offering unlimited creativity and empowering you to design One-of-a-kind spaces every time. Remote Power supplies are required and sold separately. Coordinate installation with electrical and drywall contractors. Includes a 5-year pro-rated warranty. For custom quotes and layout assistance, send drawings to design@PureEdgeLighting.com.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.87''L: Run length (Ft)
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI92 94
- Watt(Approx)2.5 W/Ft2.6 W/Ft4.4 W/Ft
- Lumens(Approx)151 Lm/Ft263 Lm/Ft428 Lm/Ft
- OpticsDirectGrazing
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLRoHS
- EnvironmentDamp
- Mounting TypeWall RecessedDrywall
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeVG
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
