VG. VERGE WALL TUNABLE WHITE 24VDC, PLASTER-IN LED SYSTEM.
Configure
Add to project



RESOURCES
DESCRIPTION

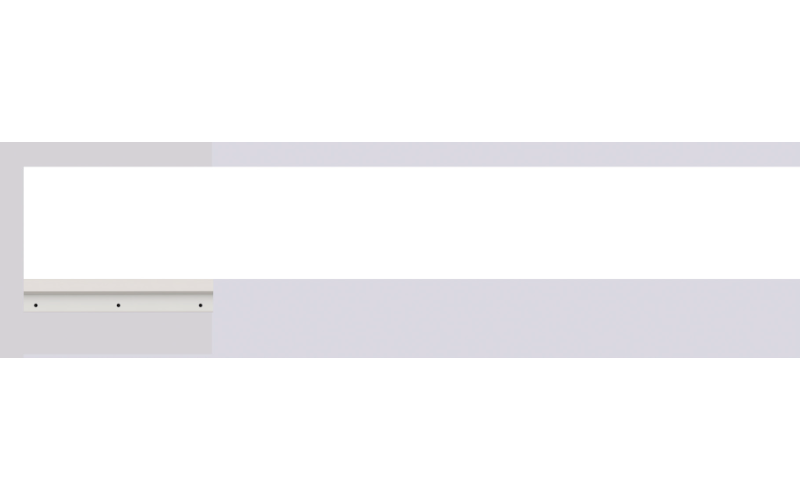

Verge Wall, a slim, plaster-in aluminum channel with a 4" paintable aluminum backer plate, highlights the transition where two drywall surfaces join together, while emitting ambient illumination. The 24VDC linear LED system mounts directly to studs without joist modification and plasters into 5/8" or thicker drywall. Verge is sold in 1' increments up to 40' and field cuttable to any length. Our Designer-grade High CRI Tunable White technology in 2000K-6500K (2K6K) or 2700K-6500K (27K6) grants independent control and adjustment of color temperature and intensity from 2000K (Sunset) through 6500K (Day Light White). Tunable white lighting visually, biologically and emotionally contributes to human interaction with the physical world. Human centric lighting (HCL) builds on this technology bringing the dynamics of natural daylight indoors, and delivering a positive effect on human health, wellbeing and performance. Coordinate installation with electrical and drywall contractors. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.87''L: Run length (Ft)
- Light SourceLED
- CCT/ColorTunable White
- CRI90
- Watt(Approx)2.5 W/Ft4.4 W/Ft7.5 W/Ft
- Lumens(Approx)91 Lm/Ft187 Lm/Ft264 Lm/Ft
- OpticsDirectGrazing
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLRoHS
- EnvironmentDamp
- Mounting TypeWall RecessedDrywall
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
