VG. VERGE WALL WARM DIM 24VDC, PLASTER-IN LED SYSTEM.
Configure
Add to project



RESOURCES
DESCRIPTION

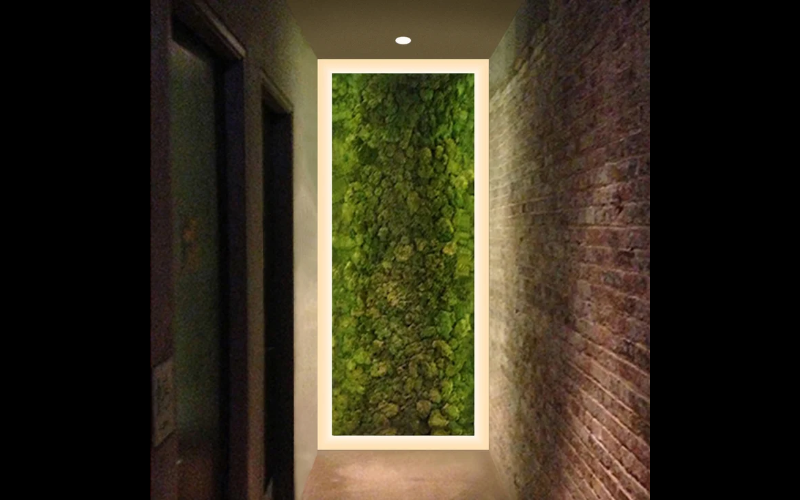

Verge Wall Warm Dim is another innovative design that comes from the family of plaster-in 24VDC systems pioneered by PureEdge that recesses within 5/8" drywall without joist modification. Verge Wall creates and highlights the transition space where two drywall surfaces join together while emitting ambient illumination, redefining the relationship between lighting and architecture. Order in 1' field-cuttable increments up to 20', the slim plaster-in aluminum extrusion has a 4" paintable backer plate. Warm Dim technology (27D & 30D) mimics an incandescent atmosphere by decreasing the color temperature as you dim. Our Warm Dim strips can be dimmed all the way down to a soothing amber hue at 1800K, reminiscent of candlelight along the halogen curve. Click here for all Other Color Temperatures. Verge brings together a Modern and Dynamic appearance to Residential and Commercial environments, offering unlimited creativity and empowering you to design One-of-a-kind spaces every time. Remote Power supplies are required and sold separately. Coordinate installation with electrical and drywall contractors. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.87''L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K Dim to Warm3000K Dim to Warm
- CRI94
- Watt(Approx)4.8 W/Ft
- Lumens(Approx)203 Lm/Ft
- OpticsDirectGrazing
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLRoHS
- EnvironmentDamp
- Mounting TypeWall RecessedDrywall
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
