PureEdge Lighting
VGC. VERGE CORNER DO-IT-YOURSELF 24VDC PLASTER-IN LED SYSTEM.
 Configure
 Add to project
DESCRIPTION

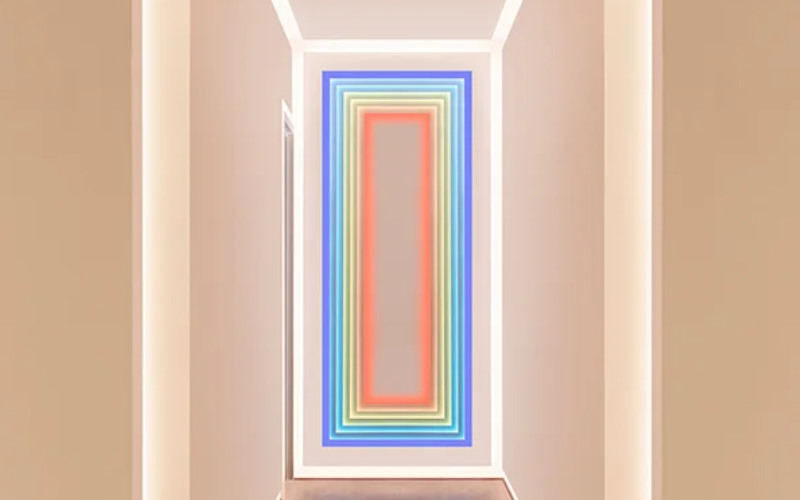

Verge Corner DIY (Do-It-Yourself) is another companion to the family of 5/8" Drywall Plaster-in systems pioneered by PureEdge. The 24VDC system contains a slim plaster-in aluminum extrusion and a 4" paintable aluminum backer plate that mounts directly to studs or ceiling joists without any modification and recesses within 5/8" or thicker drywall. Continuing to redefine the relationship between lighting and interior design, Verge Corner DIY creates visually interesting and dramatic illumination by highlighting the inside corners of two drywall surfaces such as ceiling, coves and skylights. The field-cuttable, Verge Corner channel is ordered in 1' increments (12"), our designer-grade High CRI Color Rendering LEDs are offered in eleven standard color temperatures: Static White 2000K-5700K, RGB, RGB+W, Warm Dim (27D or 30D) and, Tunable White (2K6K and 27K6) as well as three wattage options of 5WDC, 10WDC, and 14WDC. Verge brings a modern appearance to residential and commercial environments, offering unlimited creativity, and empowering you to design one-of-a-kind, personalized spaces every time. Remote Power Supplies are required and sold separately. Coordinate installation with electrical and drywall contractors. Includes a 5-year pro-rated warranty. For custom quotes and layout assistance, send drawings to design@PureEdgeLighting.com. Designed by Gregory Kay.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4"
    L: 4 Ft5 Ft8 Ft10 FtRun length (Ft)
    H: 4"
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000KTunable WhiteTunable White & ColorsRGBRGBWYellow/AmberRedGreenBlue
  • CRI
    92 94
  • Watt(Approx)
    2.5 W/Ft2.6 W/Ft4.4 W/Ft5 W/Ft6.3 W/Ft7 W/Ft7.3 W/Ft
  • Lumens(Approx)
    362 Lm/Ft410 Lm/Ft669 Lm/Ft543 Lm/Ft1033 Lm/Ft
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
  • Controls/Network
  • Power/Voltage
    Remote120V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLMade in USARoHS
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedWall RecessedDrywall
  • Housing
    Fixture
  • Housing Depth
    0.75 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
