PureEdge Lighting
VGCE. VERGE CEILING 24VDC PLASTER-IN LED SYSTEM.
 Configure
 Add to project
DESCRIPTION

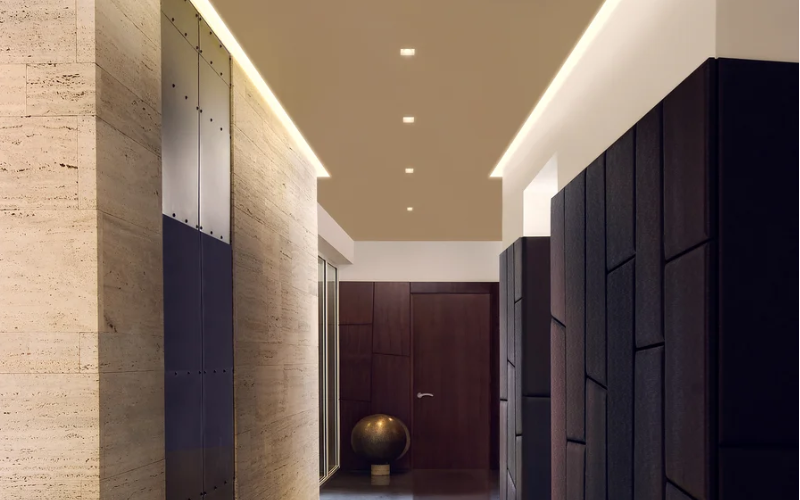

Verge Ceiling is an innovative design that comes from the family of Plaster-in 24VDC systems pioneered by PureEdge that recesses within 5/8" drywall, without joist modification. Continuing to redefine the relationship between lighting, architecture and interior design, this visionary and highly Efficient system elegantly Highlights ceiling Perimeters while emitting smooth and continuous ambient illumination. Field-cuttable, Verge Ceiling is ordered in 1' increments up to 40', the slim plaster-in aluminum extrusion has a 4" paintable backer plate. Our Designer-grade High CRI Color Rendering LEDs are available in many Color Temperatures: Static white 2200K-5700K, Warm Dim (27D or 30D) and, Dynamic/Tunable White (2K6K or 27K6) as well as multiple wattage options. This plaster-in LED system brings together a Modern and Dynamic appearance to Residential and Commercial environments, offering unlimited creativity, and empowering you to design One-of-a-kind spaces every time. Remote Power supplies are required and sold separately. Coordinate installation with electrical and drywall contractors. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 5''
    L: Run length (Ft)
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K5700KTunable White
  • CRI
    92 94 95
  • Watt(Approx)
    137 W/Ft238 W/Ft389 W/Ft
  • Lumens(Approx)
    2.5 Lm/Ft4.4 Lm/Ft7.5 Lm/Ft
  • Optics
    DirectGrazing
  • Adjustable
  • Dimming
    Dim to 3-10%ELV/Reverse/Trailing0-10VDMX
  • Controls/Network
  • Power/Voltage
    Remote
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLRoHS
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedDrywall
  • Housing
    Fixture
  • Housing Depth
    0.75 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
